GE IC3600KVSA1零速传感器卡 PDF资料
1.产 品 资 料 介 绍：
中文资料：
IC3600KVSA1 零速传感器卡 是 GE Speedtronic 系列控制系统中的一款重要组件，专门用于燃气轮机、蒸汽轮机或其他机械设备的零速监测。该卡用于检测转动设备的零速状态，确保在没有转速或转速异常的情况下及时报警，防止设备损坏或异常工况发生。
产品概述
- 型号：IC3600KVSA1
- 类型：零速传感器卡
- 功能：
- 用于实时监控转动设备的转速状态。
- 当设备转速降至零或接近零时，立即发出信号报警或触发保护动作。
- 提供与传感器的连接接口，将转速信号转换为控制系统能够处理的格式。
技术特点
转速监测：
- 通过零速传感器卡实时检测转动设备的转速变化。
- 精确监控转速是否达到设定的零速阈值，并及时报告异常情况。
零速保护：
- 一旦设备的转速降至零或接近零，该卡会立即触发警报，防止因零速状态造成机械故障。
- 在紧急情况下，可以与系统的其他安全模块联动，停止设备的运转或采取其他保护措施。
兼容性：
- 兼容多种类型的传感器，适应不同设备的需求。
- 支持与Speedtronic 控制系统无缝集成，确保系统的高效稳定运行。
高精度：
- 采用高精度的传感器输入技术，确保转速监控的准确性和实时性。
- 对零速状态的响应时间非常短，有效避免设备长时间处于危险状态。
模块化设计：
- 紧凑的设计使得该卡能方便地集成到现有的控制系统中。
- 结构模块化，便于快速更换和维护。
英文资料：
The IC3600KVSA1 zero speed sensor card is an important component of the GE Speedtronic series control system, specifically designed for zero speed monitoring of gas turbines, steam turbines, or other mechanical equipment. This card is used to detect the zero speed state of rotating equipment, ensuring timely alarm in the absence of speed or abnormal speed, and preventing equipment damage or abnormal working conditions.
Product Overview
model: IC3600KVSA1
Type: Zero speed sensor card
Function:
Used for real-time monitoring of the rotational speed status of rotating equipment.
When the device speed drops to zero or approaches zero, a signal alarm or protection action is immediately triggered.
Provide a connection interface with the sensor to convert the speed signal into a format that the control system can process.
Technical features
Speed monitoring:
Real time detection of speed changes in rotating equipment through zero speed sensor cards.
Accurately monitor whether the speed reaches the set zero speed threshold and promptly report any abnormal situations.
Zero speed protection:
Once the speed of the device drops to zero or approaches zero, the card will immediately trigger an alarm to prevent mechanical failure caused by the zero speed state.
In emergency situations, it can be linked with other security modules of the system to stop the operation of the equipment or take other protective measures.
compatibility:
Compatible with multiple types of sensors to meet the needs of different devices.
Support seamless integration with Speedtronic control system to ensure efficient and stable operation of the system.
high-precision:
Adopting high-precision sensor input technology to ensure the accuracy and real-time performance of speed monitoring.
The response time to zero speed state is very short, effectively avoiding the equipment from being in a dangerous state for a long time.
Modular design:
The compact design allows the card to be easily integrated into existing control systems.
Modular structure for quick replacement and maintenance.

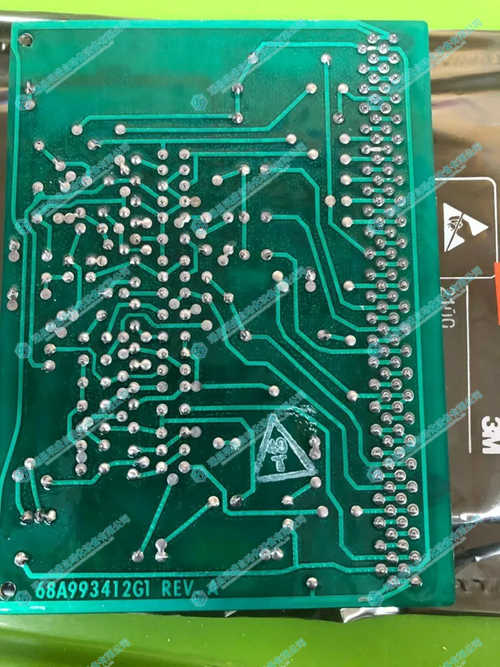

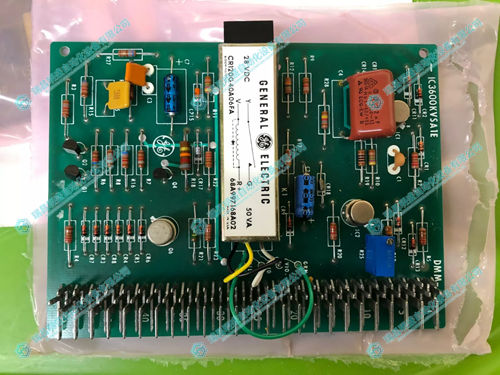

2.产 品 展 示
