LAM 810-328372-001电源驱动器卡 PDF资料
1.产 品 资 料 介 绍：
中文资料：
LAM 810-328372-001 电源驱动器卡 是泛林半导体（LAM Research）设备中的重要组件，专门设计用于提供精确的电源控制和分配。该电源驱动器卡能够有效支持多个子系统的电力需求，确保设备在复杂的半导体制造工艺中稳定运行。
产品特点
精确电源控制：
- 提供多个独立电源输出通道，能够精准调节每个通道的电压和电流，以适应不同的工艺需求。
- 支持高动态范围的电源调节，满足设备在不同负载下的电力需求。
高能效与稳定性：
- 高能效设计，最大限度地降低能耗，提升设备的整体效率。
- 稳定的输出性能，确保设备长时间运行时电源稳定性。
保护机制：
- 内置多种保护功能，如过流、过压、过温保护，能够有效防止电源故障对设备造成损害。
- 提供自动恢复功能，在出现电力异常时，能够迅速恢复正常运行。
模块化设计：
- 紧凑的卡式结构，便于在设备中集成和更换。
- 标准化的接口，支持即插即用，提升维护和更换的便利性。
广泛兼容性：
- 适配多种类型的半导体设备，为多个模块或子系统提供电源。
技术规格（假设参考）
| 参数 | 说明 |
|---|---|
| 输入电压范围 | 100-240 VAC 或 48-60 VDC |
| 输出电压范围 | 5V / 12V / 24V（具体值依据型号） |
| 最大输出功率 | 500W - 1500W |
| 输出通道数 | 多路独立输出通道 |
| 工作效率 | ≥90% |
| 保护功能 | 过流、过压、过温、短路保护 |
| 工作温度范围 | 0°C 至 70°C |
| 冷却方式 | 风冷或被动散热 |
| 尺寸 | 符合设备插槽规格的卡式模块 |
| 认证 | CE、UL、FCC等国际认证 |
英文资料：
The LAM 810-328372-001 power driver card is an important component in LAM Research equipment, specifically designed to provide precise power control and distribution. This power driver card can effectively support the power requirements of multiple subsystems, ensuring stable operation of equipment in complex semiconductor manufacturing processes.
Product Features
Accurate power control:
Provide multiple independent power output channels that can accurately adjust the voltage and current of each channel to meet different process requirements.
Support high dynamic range power regulation to meet the power requirements of devices under different loads.
High energy efficiency and stability:
High energy efficiency design minimizes energy consumption and enhances the overall efficiency of the equipment.
Stable output performance ensures power stability during long-term operation of the device.
Protection mechanism:
Built in multiple protection functions, such as overcurrent, overvoltage, and overtemperature protection, can effectively prevent power failures from causing damage to equipment.
Provide automatic recovery function, which can quickly restore normal operation in case of power abnormalities.
Modular design:
Compact card structure, easy to integrate and replace in equipment.
Standardized interfaces, supporting plug and play, enhance the convenience of maintenance and replacement.
Wide compatibility:
Adapt to various types of semiconductor devices and provide power to multiple modules or subsystems.
Technical specifications (assuming reference)
Parameter Description
Input voltage range 100-240 VAC or 48-60 VDC
Output voltage range 5V/12V/24V (specific value depends on model)
Maximum output power 500W-1500W
Multiple independent output channels with multiple output channels
Work efficiency ≥ 90%
Protection functions include overcurrent, overvoltage, overtemperature, and short-circuit protection
Working temperature range: 0 ° C to 70 ° C
Cooling method: air cooling or passive heat dissipation
Card modules with dimensions that meet the specifications of the device slot
Certification of international certifications such as CE, UL, FCC, etc

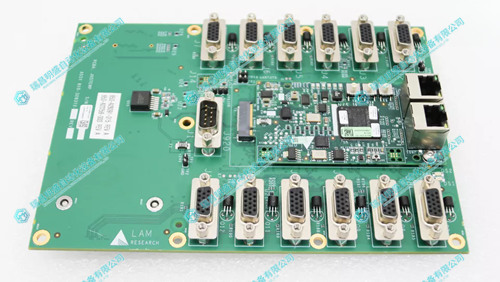

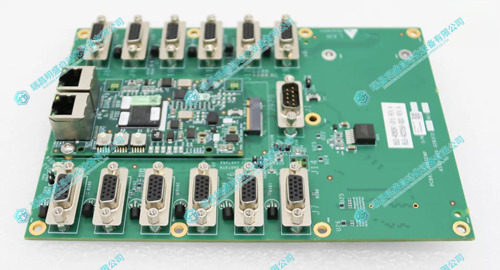

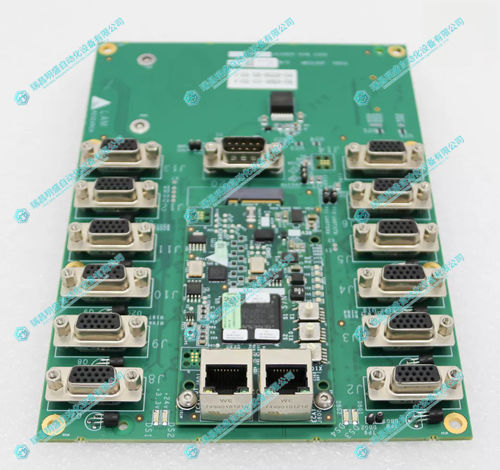

2.产 品 展 示
