Nikon 4S064-050放大器3轴电机  PDF资料

1.产 品 资 料 介 绍：

中文资料：

Nikon 4S064-050 放大器 3 轴电机是一种高精度的多轴电机驱动器，专为复杂运动控制和精密工业应用设计。该放大器能够控制 3 轴电机的运动，广泛应用于需要精确控制的工业设备中，如精密加工、半导体制造和自动化设备。

主要技术规格：

1. 控制轴数：

• 支持 3 轴电机控制，能够同时对 3 个独立的电机进行精准操作。

2. 输入电压：

• 设计为标准工业输入电压，适配常见工业电源配置。

3. 输出功率：

• 高功率输出，能够驱动多个轴的电机，实现高负载的运动控制。

4. 控制模式：

• 支持多种控制模式，包括位置控制、速度控制和力矩控制，以满足不同应用需求。

5. 通讯接口：

• 提供标准的通讯接口，如 RS232、CAN 等，便于集成到各种控制系统中。

6. 冷却方式：

• 内置散热系统，确保放大器在长时间运行中保持低温和稳定。

7. 工作温度范围：

• 能够在工业环境的较宽温度范围内工作，通常在 -10°C 到 50°C 之间。

主要特点：

1. 多轴控制：

• 可以同时控制 3 个独立的电机轴，适合用于复杂的多轴同步运动应用，确保每个轴的运动精度和协调性。

2. 高精度定位：

• 该放大器能够提供极高的定位精度，适合用于要求高精度的任务，如机器人控制和半导体制造中的精密运动控制。

3. 稳定的功率输出：

• 放大器能够提供稳定的功率输出，即使在高负载或高功率需求下，依然保持可靠的性能。

4. 智能控制功能：

• 内置智能控制功能，能够根据实时反馈数据调整电机的运动状态，提高运动控制的效率和精度。

5. 紧凑设计：

• 放大器的紧凑设计便于集成到各种设备中，不占用过多空间，非常适合复杂工业设备和精密机械的应用。

6. 多种安全保护功能：

• 内置多种安全保护功能，如过流保护、过温保护和短路保护，确保设备和操作者的安全。

应用场景：

1. 精密制造设备：

• 放大器在需要多轴控制的精密制造过程中发挥重要作用，如半导体设备、PCB 生产设备等。

2. 机器人控制：

• 用于多轴机器人系统的控制，确保各个关节轴的同步和精准运动，适合工业自动化和高精度机器人应用。

3. 自动化生产线：

• 在自动化生产线上控制多轴机械手臂或传动设备的运动，能够提高生产效率和产品质量。

4. 机床和加工设备：

• 适用于 CNC 机床和其他多轴加工设备中，能够提供精确的运动控制，提高加工精度。

5. 光学设备：

• 在光学精密设备中，如光刻机或显微设备，控制光学元件的运动，以实现高精度操作。

总结：

Nikon 4S064-050 放大器 3 轴电机是一款适用于高精度、多轴运动控制的工业级驱动器。其多轴控制、高精度定位和稳定输出等特点，使其成为复杂工业设备、自动化生产线和精密制造过程中不可或缺的组件。

英文资料：

The Nikon 4S064-050 amplifier 3-axis motor is a high-precision multi axis motor driver designed specifically for complex motion control and precision industrial applications. This amplifier can control the motion of 3-axis motors and is widely used in industrial equipment that requires precise control, such as precision machining, semiconductor manufacturing, and automation equipment.

Main technical specifications:

Number of control axes:

Support 3-axis motor control, capable of precise operation of 3 independent motors simultaneously.

Input voltage:

Designed for standard industrial input voltage and compatible with common industrial power supply configurations.

Output power:

High power output, capable of driving motors with multiple axes, achieving high load motion control.

Control mode:

Support multiple control modes, including position control, speed control, and torque control, to meet different application requirements.

Communication interface:

Provide standard communication interfaces such as RS232, CAN, etc. for easy integration into various control systems.

Cooling method:

Built in cooling system ensures that the amplifier maintains low temperature and stability during long-term operation.

Working temperature range:

Capable of operating within a wide temperature range in industrial environments, typically between -10 ° C and 50 ° C.

Main features:

Multi axis control:

It can simultaneously control three independent motor shafts, suitable for complex multi axis synchronous motion applications, ensuring the motion accuracy and coordination of each shaft.

High precision positioning:

This amplifier can provide extremely high positioning accuracy and is suitable for tasks that require high precision, such as robot control and precision motion control in semiconductor manufacturing.

Stable power output:

An amplifier can provide stable power output and maintain reliable performance even under high loads or power demands.

Intelligent control function:

Built in intelligent control function, capable of adjusting the motor's motion status based on real-time feedback data, improving the efficiency and accuracy of motion control.

Compact design:

The compact design of the amplifier facilitates integration into various devices without taking up too much space, making it very suitable for applications in complex industrial equipment and precision machinery.

Multiple security protection functions:

Built in multiple safety protection functions, such as overcurrent protection, over temperature protection, and short circuit protection, ensure the safety of equipment and operators.

Application scenarios:

Precision manufacturing equipment:

Amplifier plays an important role in precision manufacturing processes that require multi axis control, such as semiconductor equipment, PCB production equipment, etc.

Robot control:

Used for controlling multi axis robot systems, ensuring synchronous and precise motion of each joint axis, suitable for industrial automation and high-precision robot applications.

automatic production line:

Controlling the movement of multi axis robotic arms or transmission equipment on automated production lines can improve production efficiency and product quality.

Machine tools and processing equipment:

Suitable for CNC machine tools and other multi axis machining equipment, it can provide precise motion control and improve machining accuracy.

Optical equipment:

In optical precision equipment, such as lithography machines or microscopy devices, the movement of optical components is controlled to achieve high-precision operation.

Summary:

The Nikon 4S064-050 amplifier 3-axis motor is an industrial grade driver suitable for high-precision, multi axis motion control. Its multi axis control, high-precision positioning, and stable output make it an indispensable component in complex industrial equipment, automated production lines, and precision manufacturing processes.

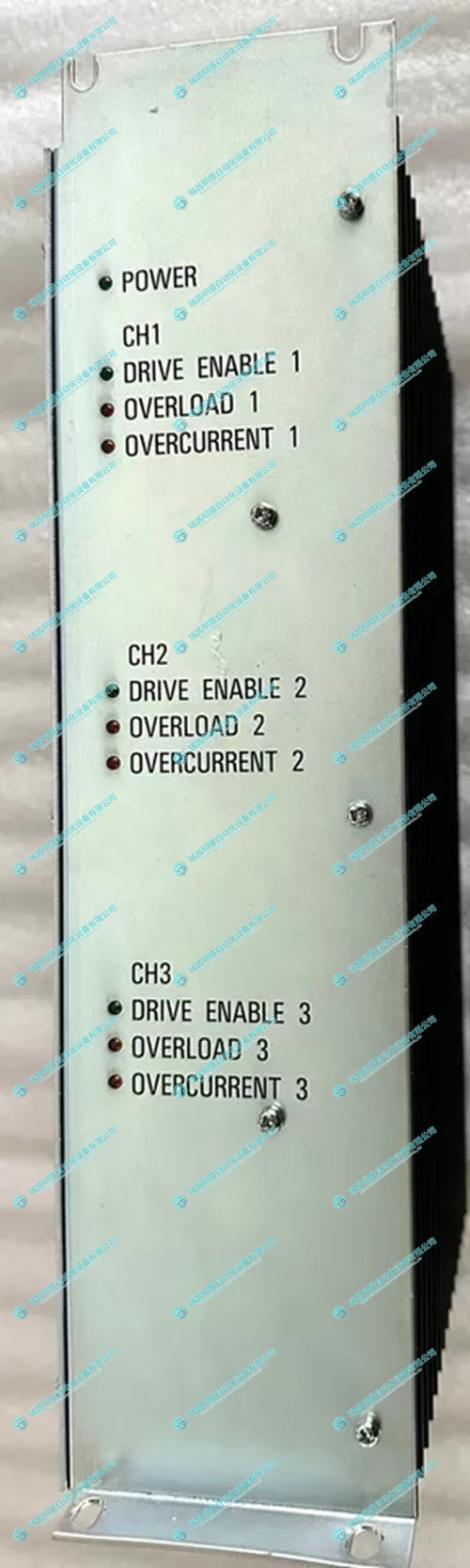

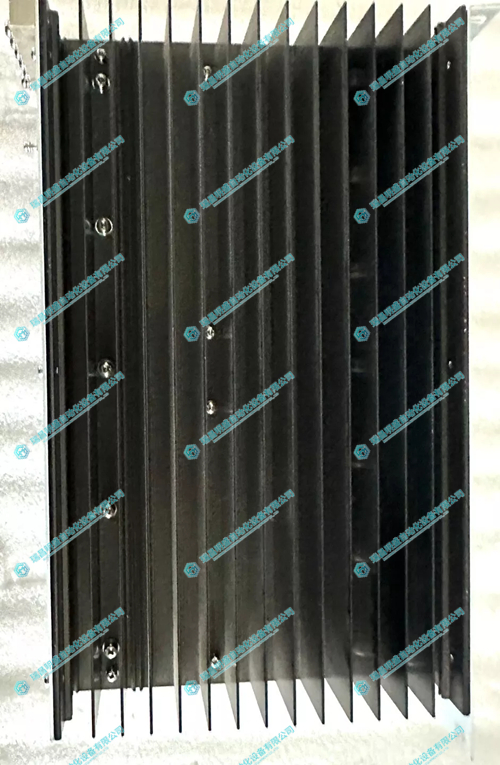

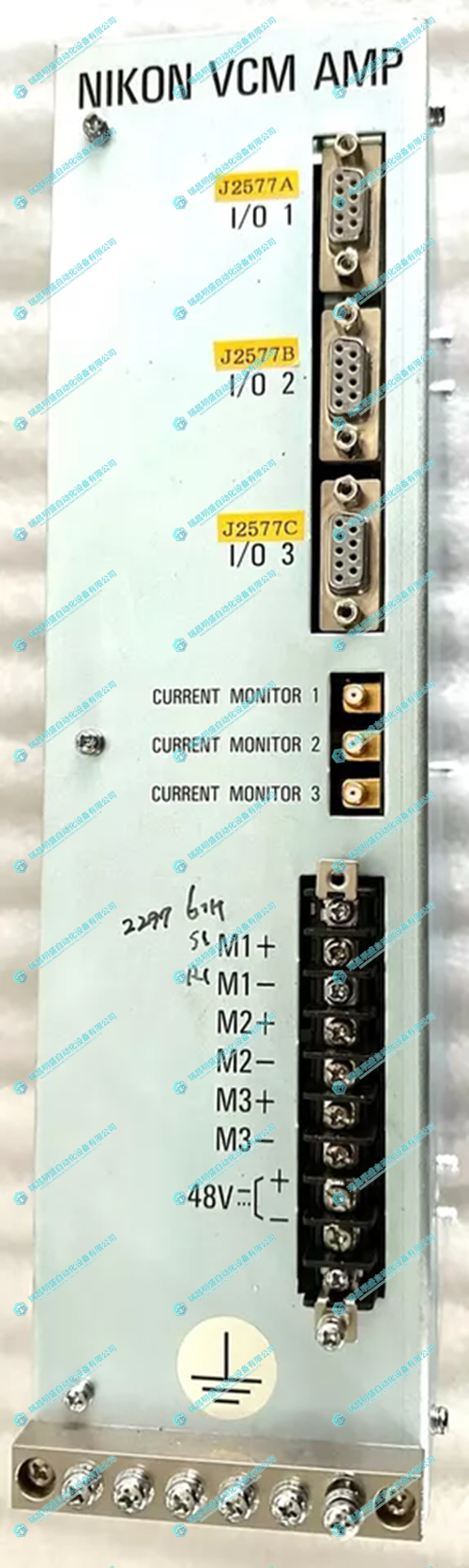

2.产      品      展      示
