CONTEC PIO-120D(PC) 数字输入输出模块 PDF资料
1.产 品 资 料 介 绍：
中文资料：
CONTEC PIO-120D(PC) 是一款数字输入/输出模块，专为工业自动化和数据采集系统设计。它提供了丰富的数字I/O通道，用于采集和控制数字信号。以下是该模块的关键规格和特点：
主要特点
数字输入/输出通道：
- 通道数：12个数字输入通道和12个数字输出通道。
- 输入类型：可以接受标准TTL电平的数字信号（通常为5V）。
- 输出类型：提供标准TTL电平输出。
接口类型：
- 接口：PCI接口，适用于标准的PCI插槽。
功能和性能：
- 输入/输出模式：通道可以灵活配置为输入或输出，以适应不同的应用需求。
- 中断功能：支持中断功能，可以在输入信号变化时触发中断，适用于需要实时响应的应用。
- 兼容性：与各种操作系统兼容，通常需要安装相应的驱动程序和软件。
应用领域：
- 工业自动化：用于监控和控制生产线上的设备，采集和发送数字信号。
- 测试和测量：在实验室测试和数据采集系统中使用，处理数字输入和输出。
- 过程控制：在过程控制系统中，实时采集和响应数字信号。
驱动和软件支持：
- 驱动程序：提供支持主流操作系统的驱动程序，确保模块的正常工作。
- 软件工具：通常提供应用开发工具和API，帮助用户进行系统集成和开发。
英文资料：
The CONTEC PIO-120D (PC) is a digital input/output module designed specifically for industrial automation and data acquisition systems. It provides rich digital I/O channels for collecting and controlling digital signals. The following are the key specifications and features of this module:
main features
Digital input/output channels:
Number of channels: 12 digital input channels and 12 digital output channels.
Input type: Can accept digital signals at standard TTL level (usually 5V).
Output type: Provides standard TTL level output.
Interface type:
Interface: PCI interface, suitable for standard PCI slots.
Function and performance:
Input/output mode: Channels can be flexibly configured as inputs or outputs to meet different application requirements.
Interrupt function: Supports interrupt function, which can trigger interrupts when the input signal changes, suitable for applications that require real-time response.
Compatibility: Compatible with various operating systems, usually requiring the installation of corresponding drivers and software.
Application areas:
Industrial automation: used for monitoring and controlling equipment on production lines, collecting and sending digital signals.
Testing and Measurement: Used in laboratory testing and data acquisition systems to process digital inputs and outputs.
Process control: Real time acquisition and response of digital signals in a process control system.
Driver and software support:
Drivers: Provide drivers that support mainstream operating systems to ensure the proper functioning of modules.
Software tools: typically provide application development tools and APIs to assist users in system integration and development.

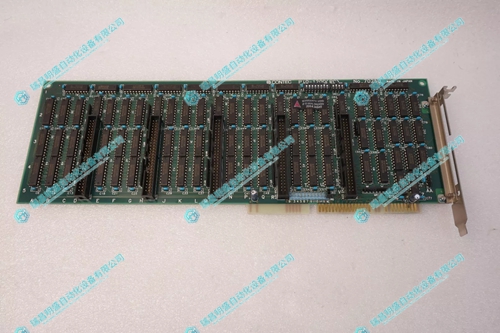

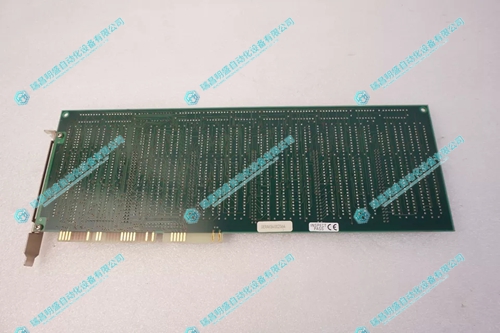

2.产 品 展 示
