1.产 品 资 料 介 绍：
中文资料：
CONTEC PO-32(98)H 是一款用于工业自动化和控制系统的 PCB 电路板，专注于提供高密度的数字输入/输出功能。以下是该产品的一些关键特点和技术规格：
产品规格：
- 产品型号: PO-32(98)H
- 制造商: CONTEC
- 接口类型: 通常为 PCI 或 PCIe（具体取决于型号）
- 输入/输出通道:
- 32路数字输入
- 32路数字输出
- 信号类型: TTL 电平或 24V DC（具体取决于具体配置）
- 电源需求: 由主机系统提供，通常为 5V 或 12V
- 隔离: 可能包括光电隔离以减少干扰
主要功能：
- 32路数字输入: 用于接收来自外部设备的数字信号，支持实时数据采集。
- 32路数字输出: 用于控制外部设备，如继电器、开关等。
- 高密度设计: 同时支持 32 路输入和 32 路输出，适合复杂的控制任务。
产品特点：
- 高通道密度: 提供大量的数字 I/O 通道，满足高密度信号处理需求。
- 工业级设计: 具有较强的抗干扰能力和稳定性，适合工业环境。
- 易于安装: 采用标准的 PCI 或 PCIe 接口，安装简便。
应用场景：
- 工业自动化: 用于生产线的监控和控制，实现自动化任务。
- 数据采集: 实时采集和处理外部数字信号，用于系统分析和监控。
- 设备控制: 控制各种工业设备，如开关、传感器等。
技术优势：
- 高可靠性: 工业级设计确保产品在苛刻环境下的稳定运行。
- 广泛兼容性: 支持多种操作系统和计算机系统，方便集成。
- 高性能: 高密度的 I/O 通道设计支持快速和准确的数据处理。
英文资料：
CONTEC PO-32 (98) H is a PCB circuit board designed for industrial automation and control systems, dedicated to providing high-density digital input/output functionality. Here are some key features and technical specifications of the product:
Product specifications:
Product model: PO-32 (98) H
Manufacturer: CONTEC
Interface type: usually PCI or PCIe (depending on the model)
Input/output channels:
32 channel digital input
32 digital outputs
Signal type: TTL level or 24V DC (depending on specific configuration)
Power requirement: Provided by the host system, usually 5V or 12V
Isolation: may include optoelectronic isolation to reduce interference
Main functions:
32 channel digital input: used to receive digital signals from external devices and support real-time data acquisition.
32 digital outputs: used to control external devices such as relays, switches, etc.
High density design: Supports both 32 inputs and 32 outputs, suitable for complex control tasks.
Product features:
High channel density: Provides a large number of digital I/O channels to meet high-density signal processing requirements.
Industrial grade design: It has strong anti-interference ability and stability, suitable for industrial environments.
Easy to install: using standard PCI or PCIe interfaces, easy to install.
Application scenarios:
Industrial automation: used for monitoring and controlling production lines to achieve automation tasks.
Data collection: Real time collection and processing of external digital signals for system analysis and monitoring.
Equipment control: Control various industrial equipment such as switches, sensors, etc.
Technical advantages:
High reliability: Industrial grade design ensures stable operation of products in harsh environments.
Wide compatibility: Supports multiple operating systems and computer systems for easy integration.
High performance: The high-density I/O channel design supports fast and accurate data processing.

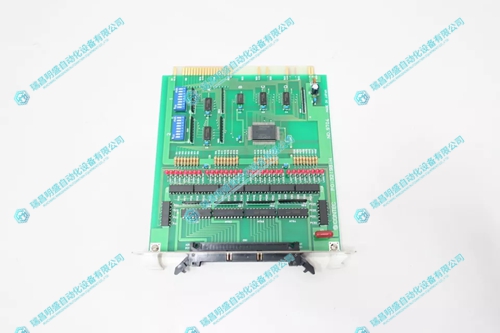

2.产 品 展 示
