CONTEC PI-32B(98) 数字I/O模块 PDF资料
1.产 品 资 料 介 绍：
中文资料：
CONTEC PI-32B(98) 是一款多通道数字输入/输出（I/O）模块，广泛应用于工业自动化、过程控制和数据采集系统中。该模块通过 ISA 总线与计算机系统连接，能够提供多达 32 路的数字 I/O 通道，灵活支持各种外部设备的信号采集和控制。
主要特点：
- 32 路数字 I/O 通道：PI-32B(98) 提供多达 32 个数字输入和输出通道，适用于复杂的工业应用，能够处理多个设备的信号。
- ISA 总线接口：该模块采用 ISA 总线接口，适合传统的工业 PC 系统，尤其是需要与旧式控制系统兼容的场合。
- 输入/输出灵活配置：每个 I/O 通道可单独配置为输入或输出，这使得模块能够根据具体的应用需求进行灵活的调整，例如同时处理传感器输入信号和控制输出信号。
- 电气隔离：I/O 通道与主系统之间提供电气隔离，确保外部设备的电气干扰不会影响系统的正常运行，并提供更高的系统可靠性。
- 高抗干扰能力：设计上具有较强的抗干扰能力，适用于工业环境中存在较多电气噪声的场景。
应用场景：
- 工业自动化控制：适用于工厂自动化系统，用于控制和监控多个设备，如传感器、开关、执行器等，确保生产线的高效运行。
- 数据采集系统：模块可以采集来自外部设备的信号并传送到计算机系统中进行监控和分析，适合远程监控或实时数据采集的应用。
- 过程控制系统：在复杂的过程控制系统中，模块可以用于接收和输出控制信号，确保设备按照预定流程运行。
技术规格：
- I/O 通道数量：32 路数字输入/输出通道，每个通道可以配置为输入或输出。
- 总线接口：ISA 总线接口，适合传统工业 PC 系统使用。
- 输入信号类型：支持简单的开关信号、传感器输入、按钮状态等。
- 输出信号类型：可输出控制信号用于启动或停止设备的操作，执行自动化任务。
- 电气隔离：模块具有电气隔离功能，确保外部电气干扰不会影响系统运行。
英文资料：
CONTEC PI-32B (98) is a multi-channel digital input/output (I/O) module widely used in industrial automation, process control, and data acquisition systems. This module is connected to the computer system through the ISA bus and can provide up to 32 digital I/O channels, flexibly supporting signal acquisition and control of various external devices.
Main features:
32 digital I/O channels: PI-32B (98) provides up to 32 digital input and output channels, suitable for complex industrial applications and capable of processing signals from multiple devices.
ISA bus interface: This module adopts ISA bus interface, which is suitable for traditional industrial PC systems, especially those that require compatibility with old control systems.
Flexible input/output configuration: Each I/O channel can be individually configured as an input or output, allowing the module to be flexibly adjusted according to specific application requirements, such as simultaneously processing sensor input signals and control output signals.
Electrical isolation: Provide electrical isolation between the I/O channel and the main system to ensure that electrical interference from external devices does not affect the normal operation of the system, and to provide higher system reliability.
High anti-interference ability: Designed with strong anti-interference ability, suitable for industrial environments with a lot of electrical noise.
Application scenarios:
Industrial automation control: suitable for factory automation systems, used to control and monitor multiple devices such as sensors, switches, actuators, etc., to ensure efficient operation of production lines.
Data acquisition system: The module can collect signals from external devices and transmit them to the computer system for monitoring and analysis, suitable for remote monitoring or real-time data acquisition applications.
Process control system: In complex process control systems, modules can be used to receive and output control signals to ensure that equipment operates according to predetermined processes.
Technical specifications:
Number of I/O channels: 32 digital input/output channels, each channel can be configured as an input or output.
Bus interface: ISA bus interface, suitable for use in traditional industrial PC systems.
Input signal type: supports simple switch signals, sensor inputs, button states, etc.
Output signal type: It can output control signals for starting or stopping equipment operations and executing automation tasks.
Electrical isolation: The module has an electrical isolation function to ensure that external electrical interference does not affect system operation.

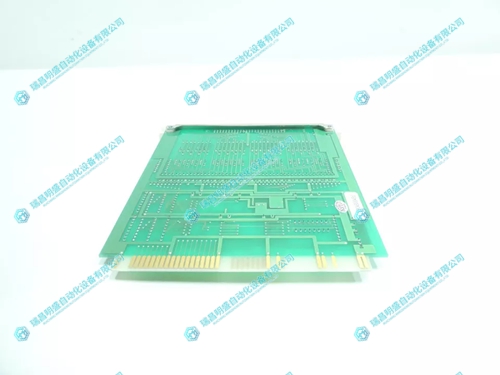

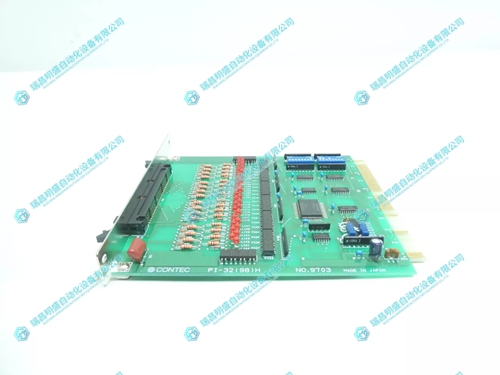

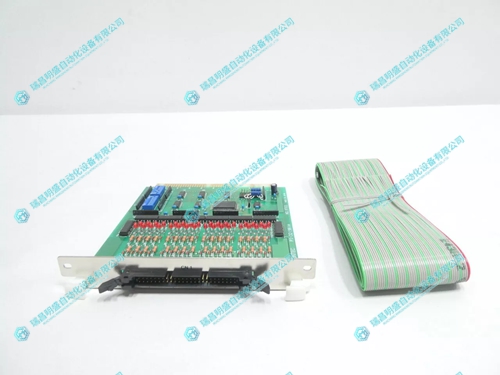

2.产 品 展 示
