MTL 5549隔离式安全栅 PDF资料
1.产 品 资 料 介 绍：
中文资料：
MTL 5549 是一款隔离式安全栅（Isolated Safety Barrier），由 MTL Instruments（现为 Belden 的一部分）制造。这种设备设计用于保护工业过程中的仪器和设备，特别是在潜在的危险环境中，以确保电气系统的安全性和可靠性。
主要特性和功能：
- 电气隔离：MTL 5549 提供输入和输出之间的电气隔离，防止现场设备的电气干扰和故障影响到控制系统，从而保护控制系统和操作人员的安全。
- 安全防护：作为隔离式安全栅，MTL 5549 符合各种安全标准，设计用于在危险环境中运行，防止电气故障引发的火花或爆炸。
- 防雷击和过压保护：具有防雷击和过压保护功能，能够有效地保护设备免受雷击和电压突变的影响，提高系统的稳定性和安全性。
- 高输入阻抗：高输入阻抗设计使得设备能够与各种传感器和信号源兼容，适应不同的应用需求。
- 宽工作温度范围：设计能够在宽温度范围内稳定工作，适应各种工业环境中的应用。
- 简便安装：设备通常设计为标准DIN导轨安装形式，便于在控制柜或配电箱中安装。
应用领域：
- 危险区域：广泛应用于化工、石油、天然气等危险环境，保护现场仪器和设备免受电气故障的影响，确保环境安全。
- 过程控制系统：在过程控制系统中，用于提供电气隔离，保护控制系统免受现场设备故障和干扰的影响。
- 工业自动化：用于工业自动化系统中，确保各种传感器和执行器的信号安全地传输到控制系统。
- 仪器保护：保护各种测量仪器和传感器，防止电气干扰对其性能造成影响。
优势：
- 增强安全性：提供有效的电气隔离和过压保护，提高系统的整体安全性，防止潜在的电气故障引发危险。
- 高可靠性：设计用于恶劣的工业环境，具备高可靠性和稳定性，能够在长时间运行中保持性能。
- 宽温范围：能够在广泛的温度范围内稳定工作，适应不同的工业环境需求。
- 简便安装和维护：标准化设计和DIN导轨安装形式，使得设备的安装和维护变得简便快捷。
总结：
MTL 5549 隔离式安全栅是确保工业过程和自动化系统安全运行的重要组件。其电气隔离功能和高可靠性设计，使其能够有效地保护设备和系统免受电气干扰和故障的影响，提高整体安全性。
英文资料：
MTL 5549 is an Isolated Safety Barrier manufactured by MTL Instruments (now part of Belden). This device is designed to protect instruments and equipment in industrial processes, especially in potentially hazardous environments, to ensure the safety and reliability of electrical systems.
Main features and functions:
Electrical isolation: MTL 5549 provides electrical isolation between input and output to prevent electrical interference and faults of on-site equipment from affecting the control system, thereby protecting the safety of the control system and operators.
Safety protection: As an isolated safety barrier, MTL 5549 meets various safety standards and is designed for operation in hazardous environments to prevent sparks or explosions caused by electrical faults.
Lightning protection and overvoltage protection: It has lightning protection and overvoltage protection functions, which can effectively protect equipment from the effects of lightning strikes and voltage fluctuations, and improve the stability and safety of the system.
High input impedance: The high input impedance design enables the device to be compatible with various sensors and signal sources, adapting to different application requirements.
Wide working temperature range: Designed to work stably within a wide temperature range and adapt to various industrial environments.
Easy installation: The equipment is usually designed in a standard DIN rail installation form, making it easy to install in control cabinets or distribution boxes.
Application areas:
Dangerous areas: widely used in hazardous environments such as chemical, petroleum, and natural gas industries to protect on-site instruments and equipment from electrical failures and ensure environmental safety.
Process control system: In a process control system, it is used to provide electrical isolation and protect the control system from the effects of on-site equipment failures and interference.
Industrial automation: used in industrial automation systems to ensure the safe transmission of signals from various sensors and actuators to the control system.
Instrument protection: Protect various measuring instruments and sensors from electrical interference that may affect their performance.
Advantages:
Enhance safety: Provide effective electrical isolation and overvoltage protection, improve the overall safety of the system, and prevent potential electrical faults from causing danger.
High reliability: Designed for harsh industrial environments, it has high reliability and stability, and can maintain performance over long periods of operation.
Wide temperature range: capable of stable operation over a wide temperature range and adapting to different industrial environmental requirements.
Easy installation and maintenance: Standardized design and DIN rail installation form make equipment installation and maintenance simple and fast.
Summary:
MTL 5549 isolated safety barrier is an important component for ensuring the safe operation of industrial processes and automation systems. Its electrical isolation function and high reliability design enable it to effectively protect equipment and systems from electrical interference and faults, improving overall safety.

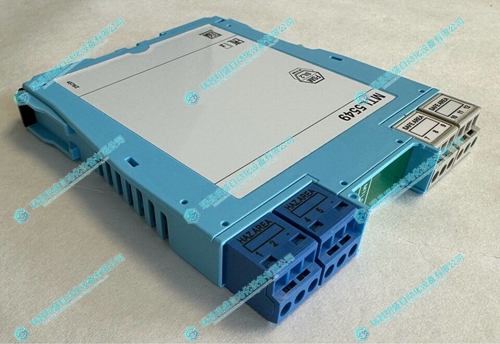

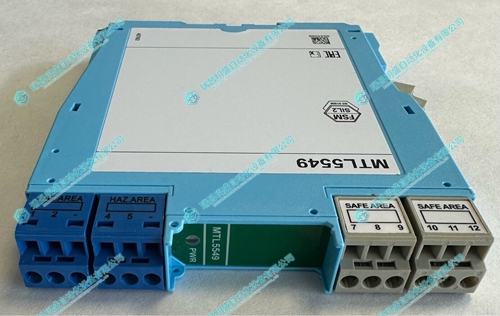

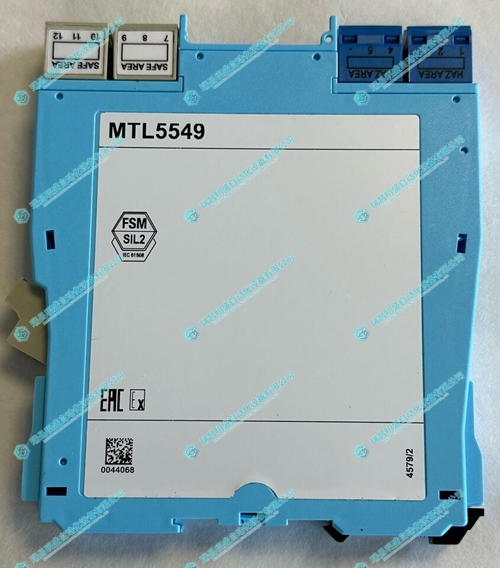

2.产 品 展 示
