PEPPERL+FUCHS HiD2082 温度信号调节器模块 PDF资料

1.产 品 资 料 介 绍：

中文资料：

PEPPERL+FUCHS HiD2082 是一种温度信号调节器模块，专门设计用于将来自热电偶（Thermocouple）或热电阻（RTD）等温度传感器的信号转换为标准化的电流或电压信号。该模块广泛应用于过程控制、自动化以及工业环境中。以下是关于 HiD2082 模块的一些关键特性和应用信息：

主要特性：

1. 信号转换：

• HiD2082 模块能够将来自热电偶或热电阻的温度信号转换为标准的模拟输出信号，通常为4-20 mA的电流信号或0-10 V的电压信号。这些标准化信号可以轻松集成到PLC、DCS或其他控制系统中。

2. 高精度：

• 该模块具有高精度的信号处理能力，确保温度信号的准确转换，从而保证控制系统对温度变化的精确响应。

3. 隔离保护：

• HiD2082 提供输入、输出和电源之间的隔离保护，防止电磁干扰和接地回路问题，确保信号传输的稳定性和安全性。

4. 诊断功能：

• 模块内置诊断功能，可以监控传感器和信号线路的状态，如开路、短路、温度范围超限等，并提供报警信号，有助于维护和故障排除。

5. 兼容性：

• 该模块支持多种类型的热电偶（如类型 J、K、T 等）和热电阻（如 PT100）的输入，灵活适应不同的温度测量需求。

6. 简便安装与配置：

• HiD2082 模块设计为DIN导轨安装，结构紧凑，便于集成到控制柜或工业现场中。通过前面板的拨码开关或软件配置，可轻松调整输入类型和输出信号范围。

应用领域：

• 过程控制：广泛应用于石油、化工、制药、食品加工等行业，用于对关键过程的温度进行监测和控制。
• 自动化系统：集成到自动化系统中，用于实时温度监控和反馈控制。
• 工业监测：在需要高精度温度测量的工业环境中提供可靠的数据支持。

英文资料：

PEPPERL+FUCHS HiD2082 is a temperature signal conditioner module specifically designed to convert signals from temperature sensors such as thermocouples or RTDs into standardized current or voltage signals. This module is widely used in process control, automation, and industrial environments. Here are some key features and application information about the HiD2082 module:

Main features:

Signal conversion:

The HiD2082 module is capable of converting temperature signals from thermocouples or thermal resistors into standard analog output signals, typically 4-20 mA current signals or 0-10 V voltage signals. These standardized signals can be easily integrated into PLC, DCS, or other control systems.

high-precision:

This module has high-precision signal processing capabilities to ensure accurate conversion of temperature signals, thereby ensuring precise response of the control system to temperature changes.

Isolation protection:

HiD2082 provides isolation protection between input, output, and power supply to prevent electromagnetic interference and grounding circuit issues, ensuring the stability and safety of signal transmission.

Diagnostic function:

The module has built-in diagnostic function, which can monitor the status of sensors and signal lines, such as open circuit, short circuit, temperature range exceeding, etc., and provide alarm signals to help maintain and troubleshoot.

compatibility:

This module supports multiple types of thermocouples (such as J, K, T, etc.) and thermal resistors (such as PT100) for input, flexibly adapting to different temperature measurement needs.

Easy installation and configuration:

The HiD2082 module is designed for DIN rail installation, with a compact structure that is easy to integrate into control cabinets or industrial sites. The input type and output signal range can be easily adjusted through the dip switch on the front panel or software configuration.

Application areas:

Process control: widely used in industries such as petroleum, chemical, pharmaceutical, and food processing to monitor and control the temperature of critical processes.

Automation system: integrated into the automation system for real-time temperature monitoring and feedback control.

Industrial monitoring: providing reliable data support in industrial environments that require high-precision temperature measurement.

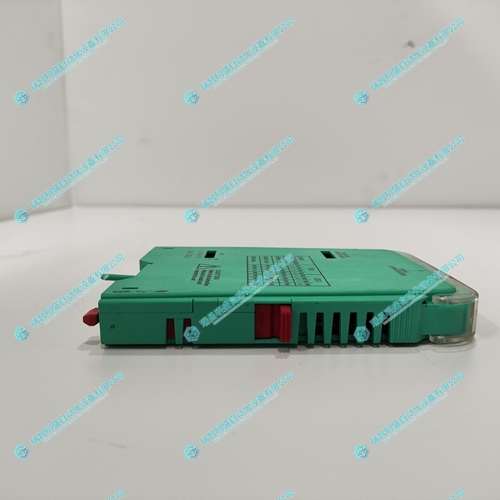

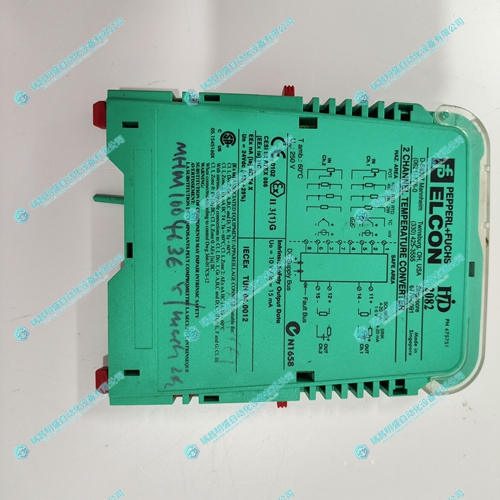

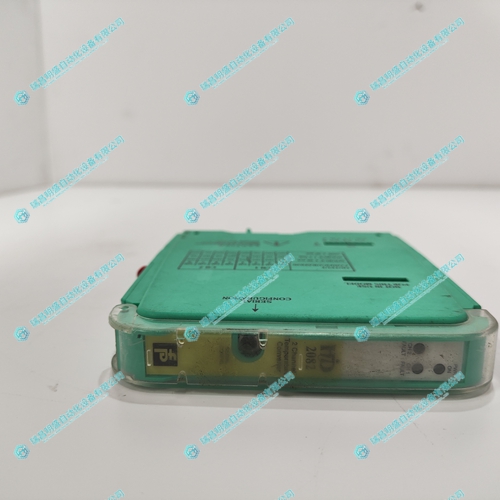

2.产      品      展      示
