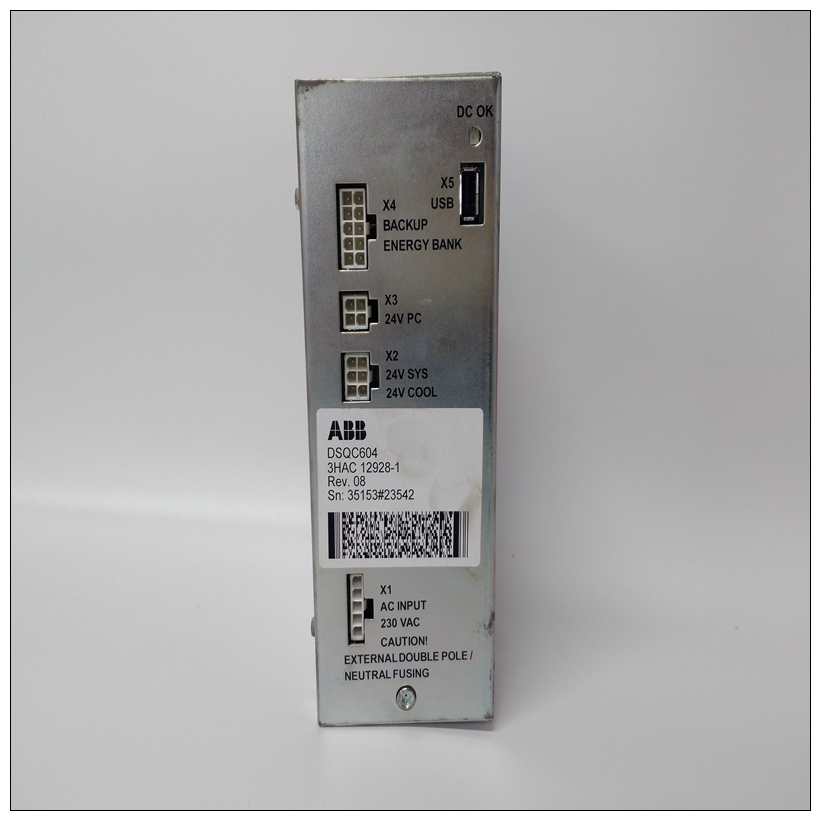

3HAC12928-1机器人特性模件,DSQC604中文PDF说明书在线阅读
执行器定位警报和可能主状态错误。
状态LED/绿色。测量LVDT一次电压。
1、如果测得的振荡器电压小于0.7 VRMS然后LVDT主要故障。
2.如果电压大于0.7 VRMS，则LVDT pri mary良好，并且伺服内存在其他一些故障阀门、执行器或相关部件导致了错误。执行器定位警报和可能次级不良地位状态LED/绿色。测量LVDT二次电压。
3HAC12928-1机器人特性模件1.如果一个或另一个LVDT二元上没有电压，则该二次输出发生故障。
2错误任何独立产品或控制系统的可靠性都是受设备维护的影响。贝利控制
公司建议所有设备用户实施预防性维护计划，以保护设备以最佳水平运行。
本节介绍了可以执行的程序现场。这些预防性维护程序应
用作指导方针，帮助您建立良好的预防措施维护实践。选择所需的最小步骤满足系统的清洁需求。
Actuator positioning
alarm and possible
bad primary status.
Status LED/green. Measure the LVDT primary voltage.
1. If the measured oscillator voltage is less than 0.7 VRMS
then the LVDT primary has failed.
2. If the voltage is greater than 0.7 VRMS then the LVDT primary is good and some other malfunction within the servo
valve, actuator or related component has caused the error.
Actuator positioning
alarm and possible
bad secondary
status.
Status LED/green. Measure the LVDT secondary voltages.
1. If no voltage is present on one or the other LVDT secondary, that secondary output has failed.
2. If both secondaries have voltage, then the LVDT secondaries are good and some other malfunction has caused the
error.The reliability of any stand-alone product or control system is
affected by the maintenance of the equipment. Bailey Controls
Company recommends that all equipment users practice a preventive maintenance program that will keep the equipment
operating at an optimum level.
This section presents procedures that can be performed
on-site. These preventive maintenance procedures should be
used as guidelines to assist you in establishing good preventive
maintenance practices. Select the minimum steps required to
meet the cleaning needs of your system.
