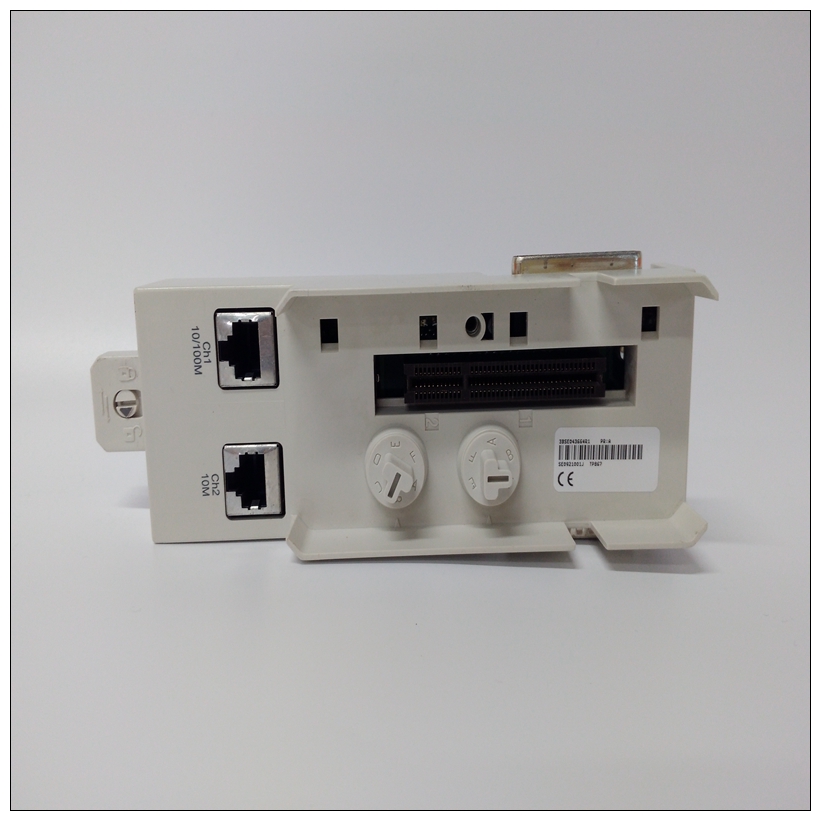

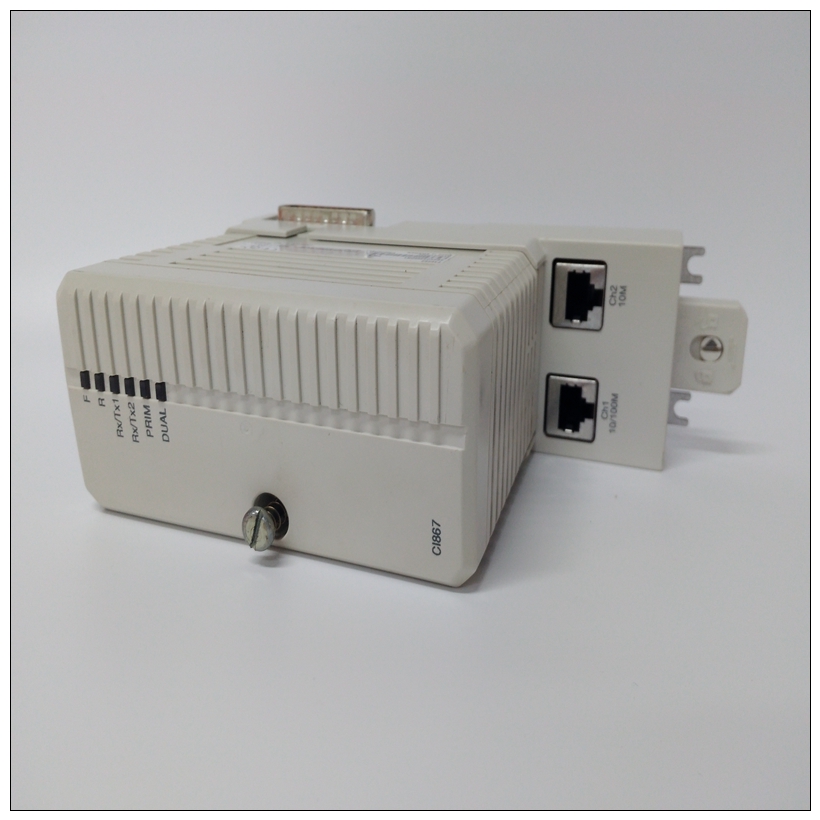

3BSE043660R1处理器模块,3BSE043660R1用户手册
故障排除部分的这一部分涵盖了离线故障以及如何排除这些故障。发生离线故障
在模块校准期间，由于不正确或安装或校准不完整。
如果HSS模块在完成安装程序后未能校准：1、使用故障排除查找故障原因图6-3中的流程图。
2、纠正措施见表6-5。3、如果HSS模块继续无法校准，并且无法使用故障排除流程图定位故障或按照表6-5中的步骤更换HSS模块。检查功能代码55或150规格。验证该功能
设置代码55或150进行校准。
3BSE043660R1处理器模块IMHSS03无法校准，并且存在无配置错误。不合适的安装检查IMHSS03和相关硬件的安装。拆卸IMHSS03并检查输入/输出扩展器总线双分流。所有分流引脚应短路。
2.检查IMHSS03上的双列直插式开关设置。请参阅第节3验证DIP开关是否正确设置用于模块安装。3、将模块插入MMU。4、检查终端电缆。a、 验证电缆是否连接到MMU背板。
b、 验证电缆是否将IMHSS03上的P3连接到IMHSS03上的P1终端模块上的终端单元或P3。
5.检查终端装置或终端模块上的跳线设置。请参阅双工分流器或跳线设置的附录。
6、检查工艺接线。验证过程接线是否正确连接到终端装置上的正确端子或单元有关端子分配，请参阅附录。检查阀门、液压执行器、LVDT和伺服相关硬件。
This part of the troubleshooting section covers off-line failures
and how to troubleshoot those failures. Off-line failures occur
during module calibration and are a result of improper or
incomplete installation or calibration.
If the HSS module fails to calibrate after completing the installation procedure:
1. Locate the cause of the failure using the troubleshooting
flowchart in Figure 6-3.
2. Refer to Table 6-5 for corrective action.3. If the HSS module continues to fail to calibrate and the
failure cannot be located using the troubleshooting flowchart
or the steps in Table 6-5, replace the HSS module.
If replacing the module does not correct the problem call
Bailey technical support for assistance.Check function code 55 or 150 specifications. Verify that function
code 55 or 150 is set for calibration.
IMHSS03 fails to calibrate and there are
no configuration
errors.
Improper
installation.
Check the installation of the IMHSS03 and related hardware.
1. Remove the IMHSS03 and check the I/O expander bus
dipshunt. All the dipshunt pins should be shorted.
2. Check the dipswitch settings on the IMHSS03. Refer to Section
3 to verify that the dipswitches are properly set for module installation.
3. Insert the module in the MMU.
4. Check the termination cable.
a. Verify that the cable is connected to the correct slot on the
MMU backplane.
b. Verify that the cable connects P3 on the IMHSS03 to P1 on
the termination unit or P3 on the termination module.
5. Check the dipshunt settings on the termination unit or the
jumper settings on the termination module. Refer to the
appendices for dipshunt or jumper settings.
6. Check the process wiring. Verify that the process wiring is
connected to the correct terminals on the termination unit or
module. Refer to the appendices for terminal assignments.
7. Check the valve, hydraulic actuator, LVDT and installation of the
servo related hardware.
