Multilin BEHPSCAX电机管理器 PDF资料
1.产 品 资 料 介 绍:
中文资料:
Multilin BEHPSCAX 是 GE Multilin 系列中的一款电机管理器,设计用于提供高级的电机保护和控制功能。这款设备针对电机保护系统的需求,提供了综合的保护、监控和控制能力。以下是关于 Multilin BEHPSCAX 电机管理器的详细信息:
主要特性和功能
电机保护功能:
- 过电流保护: 提供针对过电流的保护,防止电机在电流过高时受损。
- 过载保护: 实现过载保护,防止电机在负荷超出设计范围时运行。
- 过温保护: 监测电机温度,提供过温保护以防止过热导致的损坏。
- 接地故障保护: 检测接地故障情况,防止电机因接地问题引发的安全隐患。
- 堵转保护: 监测电机的转速和运行状态,提供堵转保护以防止电机长时间在堵转状态下运行。
监控与诊断:
- 实时监控: 实时监控电机的电流、电压、功率、转速等参数,确保电机在安全范围内运行。
- 事件记录: 记录保护事件和故障信息,便于故障分析和维护。
- 自诊断功能: 内置自诊断功能,定期检查电机管理器的运行状态,确保设备正常工作。
通信与集成:
- 多种通信接口: 支持 RS-232、RS-485、以太网等多种通信接口,方便与其他设备和系统的集成。
- 支持标准通信协议: 支持 Modbus、DNP3 等工业标准通信协议,确保数据传输的兼容性。
用户界面与配置:
- 图形化显示: 配备 LCD 显示屏,直观显示电机运行状态和保护参数。
- 易于配置: 提供用户友好的配置界面,便于设置和调整电机保护参数。
- 远程访问: 支持远程访问和管理,用户可以通过网络对设备进行远程监控和配置。
高可靠性设计:
- 工业级设计: 采用工业级组件和设计,确保设备在恶劣环境下的稳定性和可靠性。
- 冗余设计: 提供冗余电源输入和信号路径,确保在主系统故障时仍能正常运行。
应用领域
- 电力系统: 适用于发电厂、变电站和配电网络中的电机保护和控制。
- 工业自动化: 用于工业自动化系统中的电机保护和数据采集,确保电机的安全运行。
- 制造业: 应用于制造业中的电机驱动和控制系统,提升设备的可靠性和安全性
英文资料:
Multilin BEHPSCAX is a motor manager in the GE Multilin series, designed to provide advanced motor protection and control functions. This device provides comprehensive protection, monitoring, and control capabilities for the needs of motor protection systems. The following is detailed information about the Multilin BEHPSCAX motor manager:
Main features and functions
Motor protection function:
Overcurrent protection: Provides protection against overcurrent to prevent damage to the motor when the current is too high.
Overload protection: Implement overload protection to prevent the motor from running when the load exceeds the design range.
Over temperature protection: Monitor motor temperature and provide over temperature protection to prevent damage caused by overheating.
Ground fault protection: detect ground faults and prevent safety hazards caused by grounding issues in the motor.
Lock rotor protection: Monitor the speed and operating status of the motor, provide lock rotor protection to prevent the motor from running in a locked rotor state for a long time.
Monitoring and Diagnosis:
Real time monitoring: Real time monitoring of motor parameters such as current, voltage, power, and speed to ensure that the motor operates within a safe range.
Event recording: Record protection events and fault information for easy fault analysis and maintenance.
Self diagnostic function: Built in self diagnostic function, regularly check the operating status of the motor manager to ensure that the equipment is working properly.
Communication and Integration:
Multiple communication interfaces: Supports various communication interfaces such as RS-232, RS-485, Ethernet, etc., facilitating integration with other devices and systems.
Support standard communication protocols: Supports industrial standard communication protocols such as Modbus and DNP3 to ensure compatibility in data transmission.
User interface and configuration:
Graphic display: Equipped with an LCD screen, it intuitively displays the motor's operating status and protection parameters.
Easy to configure: Provides a user-friendly configuration interface for setting and adjusting motor protection parameters.
Remote Access: Supports remote access and management, allowing users to remotely monitor and configure devices through the network.
High reliability design:
Industrial grade design: Using industrial grade components and designs to ensure the stability and reliability of equipment in harsh environments.
Redundant design: Provide redundant power input and signal paths to ensure normal operation in the event of a main system failure.
application area
Power system: suitable for motor protection and control in power plants, substations, and distribution networks.
Industrial automation: used for motor protection and data acquisition in industrial automation systems to ensure the safe operation of motors.
Manufacturing industry: motor drive and control systems applied in the manufacturing industry to enhance the reliability and safety of equipment

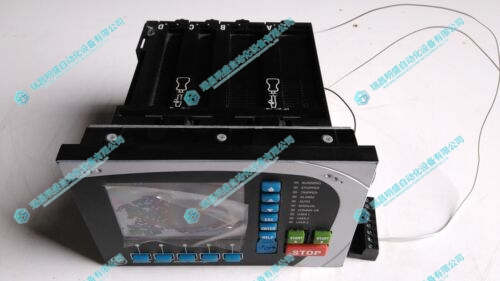

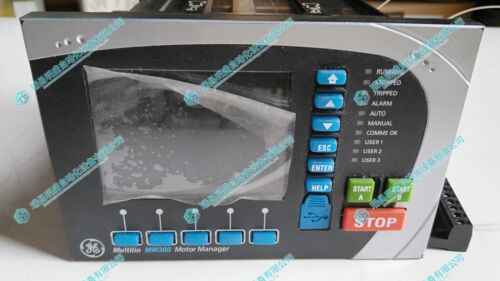

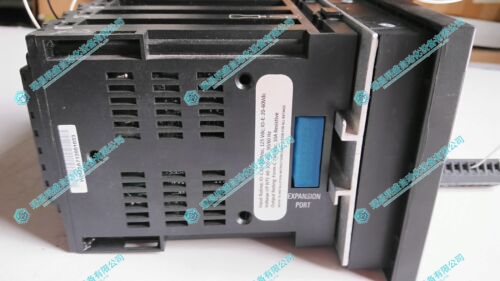

2.产 品 展 示
