Multilin L90D00HCHF8AH6前面板
1.产 品 资 料 介 绍：
中文资料：
Multilin L90D00HCHF8AH6前面板是Multilin L90系列线路保护系统的重要组成部分。该前面板具有用户界面和操作功能，专为电力保护和控制应用而设计。以下是关于Multilin L90D00HCHF8AH6前面板的详细信息，包括其特点和应用领域：
产品特点
用户友好的界面
- LCD显示屏：高分辨率LCD显示屏，清晰显示设备状态、报警信息和操作指令。
- 按键操作：前面板上配有操作按键，便于用户进行本地设置和参数调整。
实时监控
- 状态指示：提供实时设备状态指示，包括运行状态、报警状态和故障状态等。
- 数据显示：实时显示关键运行参数，如电流、电压、功率等，便于用户监控设备运行情况。
故障诊断
- 报警功能：具备报警功能，帮助用户及时发现和处理设备故障，减少停机时间。
- 事件记录：内置事件记录功能，记录设备运行中的关键事件，便于故障分析和诊断。
坚固耐用
- 工业级设计：采用坚固的工业级材料，能够承受恶劣环境中的各种挑战。
- 高防护等级：具备高防护等级，如IP54，防尘防水，适用于严苛的工业环境。
易于维护
- 模块化设计：前面板模块化设计，便于拆卸和更换，降低维护成本。
- 可编程功能：支持用户根据具体应用需求进行编程设置，提供灵活的使用体验。
应用领域
电力系统
- 线路保护：用于输配电线路的保护和监控，确保电力系统的稳定运行。
- 变电站自动化：在变电站中提供设备状态监控和故障保护，提升电力系统的可靠性和安全性。
工业自动化
- 生产线控制：用于工业生产线中的设备保护和控制，确保生产过程的连续性和高效性。
- 过程控制：在复杂的工业过程控制系统中提供精准控制和保护，确保工艺的稳定性和安全性。
石油和天然气
- 管道监控：在石油和天然气管道中进行实时监控和故障保护，防止泄漏和事故发生。
- 钻井平台：用于钻井平台设备的保护和控制，确保作业安全和效率。
交通系统
- 轨道交通控制：在轨道交通系统中提供设备保护和控制，确保列车运行的安全和可靠。
- 隧道管理：用于隧道通风和照明系统的监控和控制，提升隧道运营的安全性和效率。
技术规格
- 显示屏：高分辨率LCD显示屏，清晰显示运行参数和状态信息。
- 按键操作：前面板配有操作按键，便于本地设置和操作。
- 通信接口：支持多种通信接口，如RS232、RS485等，便于与其他设备进行通信。
- 工作温度：适应宽范围的工作温度，通常为-20°C至+60°C。
- 防护等级：高防护等级，如IP54，防尘防水，适用于严苛的工业环境。
总结
Multilin L90D00HCHF8AH6前面板通过其用户友好的界面、实时监控功能、坚固耐用的设计和易于维护的特点，为电力系统和工业自动化应用提供了可靠的监控和控制解决方案。其广泛的应用领域包括电力系统、工业自动化、石油和天然气以及交通系统等
英文资料：
The front panel of Multilin L90D00HCHF8AH6 is an important component of the Multilin L90 series line protection system. This front panel features a user interface and operational functions, designed specifically for power protection and control applications. The following is detailed information about the front panel of Multilin L90D00HCHF8AH6, including its features and application areas:
Product Features
User friendly interface
LCD display screen: High resolution LCD display screen that clearly displays device status, alarm information, and operation instructions.
Button operation: The front panel is equipped with operation buttons for users to easily perform local settings and parameter adjustments.
Real time monitoring
Status indication: Provides real-time device status indication, including operating status, alarm status, and fault status.
Data display: Real time display of key operating parameters, such as current, voltage, power, etc., to facilitate user monitoring of equipment operation.
fault diagnosis
Alarm function: It has an alarm function to help users detect and handle equipment failures in a timely manner, reducing downtime.
Event recording: Built in event recording function, recording key events during device operation for easy fault analysis and diagnosis.
durable
Industrial grade design: using sturdy industrial grade materials that can withstand various challenges in harsh environments.
High protection level: It has a high protection level, such as IP54, dustproof and waterproof, suitable for harsh industrial environments.
Easy to maintain
Modular design: The front panel is designed to be modular, making it easy to disassemble and replace, and reducing maintenance costs.
Programmable function: supports users to program settings according to specific application needs, providing a flexible user experience.
application area
Power system
Line protection: used for the protection and monitoring of transmission and distribution lines, ensuring the stable operation of the power system.
Substation automation: providing equipment status monitoring and fault protection in substations to enhance the reliability and safety of the power system.
industrial automation
Production line control: used for equipment protection and control in industrial production lines, ensuring the continuity and efficiency of the production process.
Process control: Provide precise control and protection in complex industrial process control systems to ensure process stability and safety.
Oil and gas
Pipeline monitoring: Real time monitoring and fault protection in oil and gas pipelines to prevent leaks and accidents.
Drilling platform: used for the protection and control of drilling platform equipment, ensuring operational safety and efficiency.
traffic system
Rail transit control: Provide equipment protection and control in the rail transit system to ensure the safety and reliability of train operation.
Tunnel management: used for monitoring and controlling tunnel ventilation and lighting systems to enhance the safety and efficiency of tunnel operations.
technical specifications
Display screen: High resolution LCD display screen, clearly displaying operating parameters and status information.
Button operation: The front panel is equipped with operation buttons for easy local setting and operation.
Communication interface: Supports multiple communication interfaces, such as RS232, RS485, etc., for easy communication with other devices.
Working temperature: Suitable for a wide range of working temperatures, typically from -20 ° C to+60 ° C.
Protection level: High protection level, such as IP54, dustproof and waterproof, suitable for harsh industrial environments.
summary
The front panel of Multilin L90D00HCHF8AH6 provides a reliable monitoring and control solution for power systems and industrial automation applications through its user-friendly interface, real-time monitoring function, sturdy and durable design, and easy maintenance features. Its wide application areas include power systems, industrial automation, oil and gas, and transportation systems

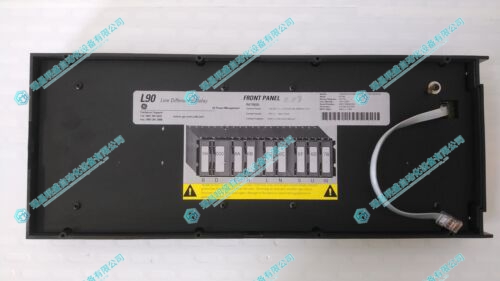

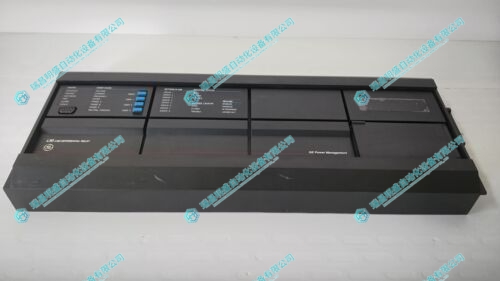

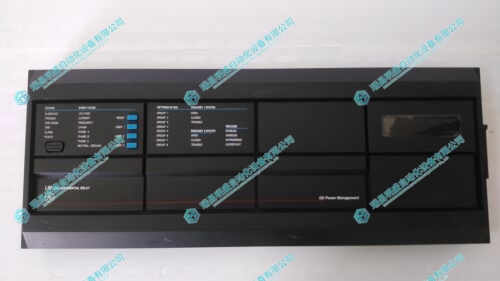

2.产 品 展 示
