Multilin 469-P5-HI-A20继电器外壳
1.产 品 资 料 介 绍：
中文资料：
Multilin 469-P5-HI-A20 继电器是 GE Multilin 系列中的一款用于电机保护的继电器，设计用于提供先进的保护和控制功能。它主要用于保护和管理中高压电机，防止由于过载、短路、接地故障等引起的损坏。以下是关于 Multilin 469-P5-HI-A20 继电器外壳及其特点的详细信息：
外壳特点
坚固耐用
- 高强度材料：采用高强度材料制造，能够承受严苛的工业环境。
- 抗冲击性：外壳具有良好的抗冲击性能，保护内部电子元件免受物理损伤。
防护设计
- 防尘防水：外壳设计符合防护等级要求，具备防尘和防水功能，适用于多种工业环境。
- 绝缘保护：提供优良的绝缘保护，确保操作安全，防止电气事故。
热管理
- 散热设计：外壳设计有良好的散热结构，确保继电器在长时间工作时保持适宜的温度。
- 通风孔：适当位置设置通风孔，促进空气流通，进一步提高散热效果。
安装便捷
- 标准尺寸：符合工业标准尺寸，便于在控制柜或面板上安装。
- 固定方式：提供多种固定方式，如面板安装、DIN导轨安装等，灵活适应不同安装需求。
人性化设计
- 易于操作：外壳设计便于操作和维护，前面板设有显示屏和控制按钮，方便用户进行设置和监控。
- 指示灯：配备状态指示灯，实时显示设备运行状态和故障信息。
应用领域
电力系统
- 变电站：用于变电站中电机的保护和管理，确保电力传输的安全和稳定。
- 发电厂：在发电厂中保护重要电机设备，防止因故障导致的停机和损坏。
工业自动化
- 生产线控制：保护和控制生产线中的电机设备，确保生产线的连续性和高效运行。
- 过程控制：用于工业过程中的电机保护，防止因设备故障导致的工艺中断。
石油和天然气
- 钻井设备：保护钻井设备中的电机，防止因过载或短路导致的损坏。
- 输油泵站：管理和保护输油泵电机，确保输油过程的高效和安全。
水处理设施
- 水泵控制：保护和控制水泵电机，确保水处理设施的稳定运行。
- 污水处理：用于污水处理厂中电机的保护，防止设备故障导致的环境污染。
交通系统
- 轨道交通：在轨道交通系统中保护电机设备，确保列车运行的安全和可靠。
- 隧道通风：控制和保护隧道通风系统中的电机设备，确保通风系统的正常运行。
技术规格
- 防护等级：根据具体型号，通常达到 IP54 或更高，适用于室内外各种环境。
- 材料：高强度金属或工程塑料，具有良好的机械强度和耐候性。
- 尺寸：标准工业尺寸，具体尺寸参数请参考产品手册。
- 安装方式：支持面板安装、DIN导轨安装等多种方式，适应不同应用需求。
- 操作温度：设计适应宽范围的操作温度，通常为 -20°C 至 60°C。
总结
Multilin 469-P5-HI-A20 继电器外壳通过其坚固耐用的设计、良好的防护性能、优越的热管理和便捷的安装方式，为各种工业应用中的电机保护和管理提供了可靠的解决方案。其应用领域广泛，包括电力系统、工业自动化、石油和天然气、水处理设施以及交通系统等。
英文资料：
The Multilin 469-P5-HI-A20 relay is a relay in the GE Multilin series designed for motor protection, providing advanced protection and control functions. It is mainly used to protect and manage medium and high voltage motors, preventing damage caused by overload, short circuit, grounding faults, etc. The following is detailed information about the housing and characteristics of the Multilin 469-P5-HI-A20 relay:
Shell characteristics
durable
High strength materials: Made of high-strength materials, capable of withstanding harsh industrial environments.
Impact resistance: The shell has good impact resistance, protecting internal electronic components from physical damage.
Protective design
Dustproof and Waterproof: The shell design meets the requirements of protection level and has dustproof and waterproof functions, suitable for various industrial environments.
Insulation protection: Provide excellent insulation protection to ensure operational safety and prevent electrical accidents.
Thermal management
Heat dissipation design: The shell design has a good heat dissipation structure to ensure that the relay maintains a suitable temperature during long-term operation.
Ventilation holes: Install ventilation holes at appropriate locations to promote air circulation and further improve heat dissipation.
Easy installation
Standard size: Complies with industrial standard dimensions, making it easy to install on control cabinets or panels.
Fixed method: Provides multiple fixed methods, such as panel installation, DIN rail installation, etc., to flexibly adapt to different installation needs.
user-friendly design
Easy to operate: The shell design is easy to operate and maintain, and the front panel is equipped with a display screen and control buttons, making it convenient for users to set up and monitor.
Indicator lights: Equipped with status indicator lights, real-time display of device operating status and fault information.
application area
Power system
Substation: Used for the protection and management of motors in substations, ensuring the safety and stability of power transmission.
Power plant: Protect important motor equipment in the power plant to prevent shutdown and damage caused by faults.
industrial automation
Production line control: protect and control the motor equipment in the production line to ensure the continuity and efficient operation of the production line.
Process control: Used for motor protection in industrial processes to prevent process interruptions caused by equipment failures.
Oil and gas
Drilling equipment: Protect the motors in the drilling equipment to prevent damage caused by overload or short circuit.
Oil pumping station: Manage and protect the oil pump motor to ensure efficient and safe oil transportation process.
Water treatment facilities
Pump control: protect and control the pump motor to ensure the stable operation of water treatment facilities.
Wastewater treatment: used for the protection of motors in wastewater treatment plants to prevent environmental pollution caused by equipment failure.
traffic system
Rail transit: Protecting motor equipment in the rail transit system to ensure the safety and reliability of train operation.
Tunnel ventilation: Control and protect the motor equipment in the tunnel ventilation system to ensure the normal operation of the ventilation system.
technical specifications
Protection level: Depending on the specific model, it usually reaches IP54 or higher and is suitable for various indoor and outdoor environments.
Material: High strength metal or engineering plastic, with good mechanical strength and weather resistance.
Size: Standard industrial size, please refer to the product manual for specific size parameters.
Installation method: Supports various methods such as panel installation and DIN rail installation to meet different application needs.
Operating temperature: Designed to accommodate a wide range of operating temperatures, typically from -20 ° C to 60 ° C.
summary
The Multilin 469-P5-HI-A20 relay housing provides a reliable solution for motor protection and management in various industrial applications through its sturdy and durable design, excellent protective performance, superior thermal management, and convenient installation. It has a wide range of applications, including power systems, industrial automation, oil and gas, water treatment facilities, and transportation system

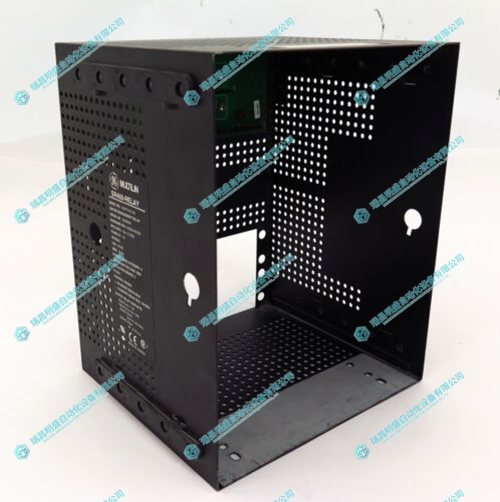

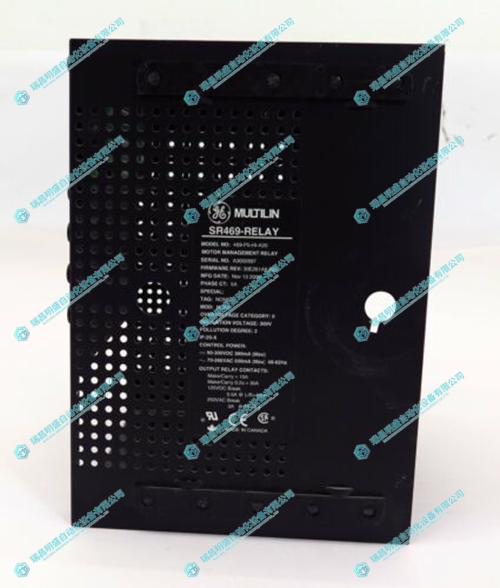

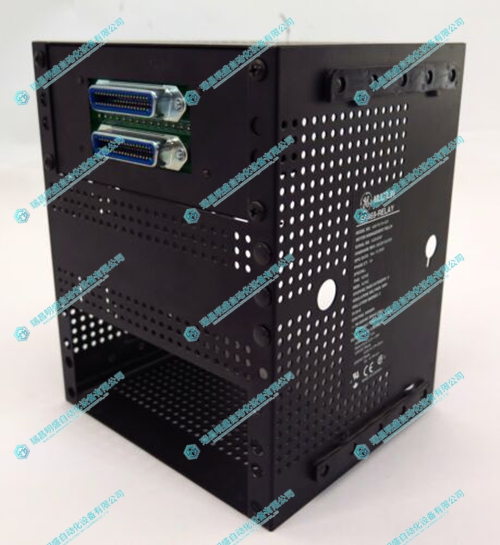

2.产 品 展 示
