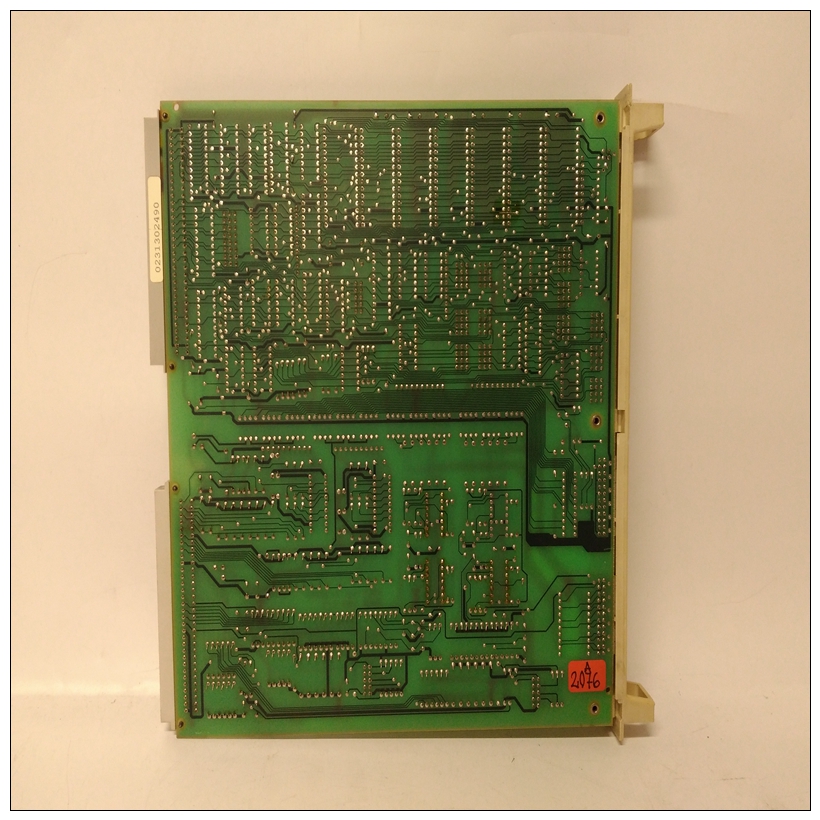

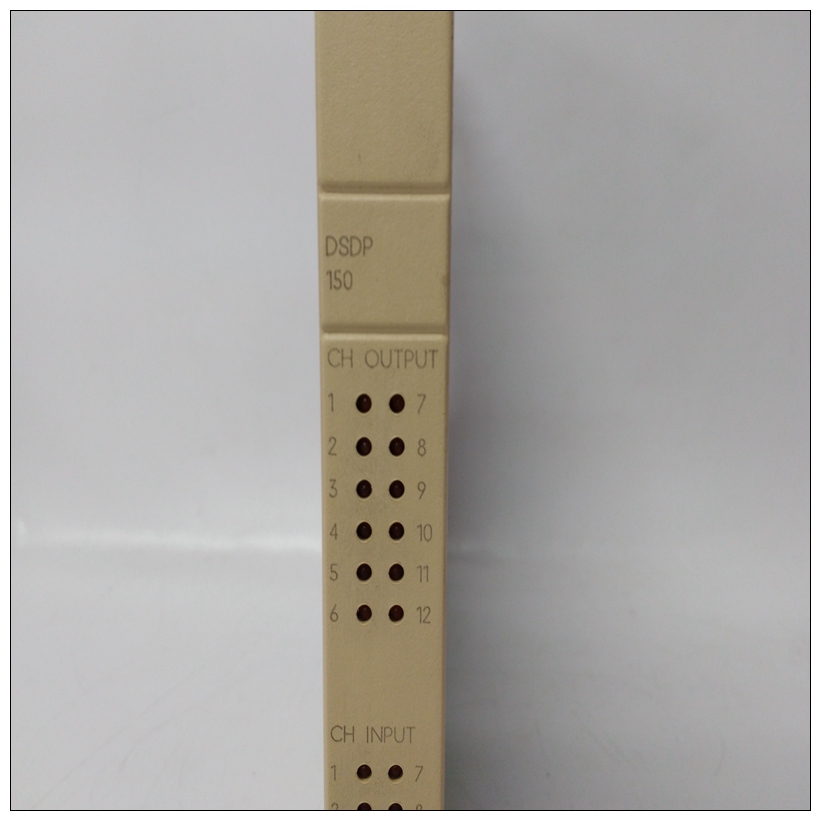

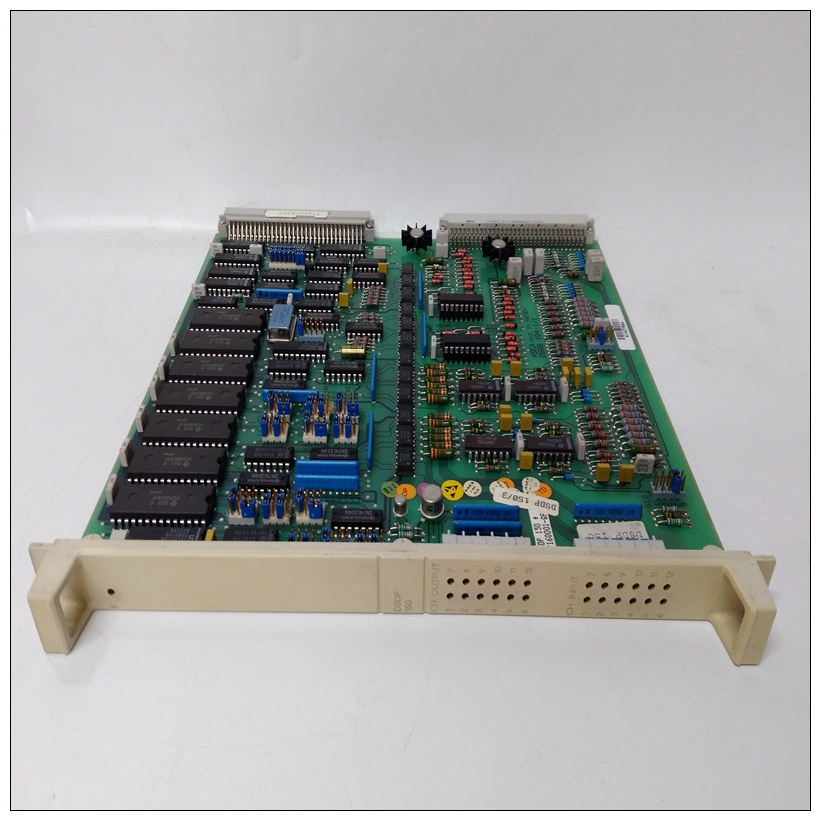

DSDP150热电偶模块,DSDP150使用方法
AC 800C是属于AC 800系列的一种小型、经济高效的控制器。
其配置和编程如下Control Builder M，Windows 2000®应用
AC 800C有10个数字输入和6个车载数字输出。取决于获得的许可证，最多36个外部数字和/或模拟输入/输出单元也可以有联系的。
控制器有两个车载RJ-45RS-232通道的插孔。可选带有实时时钟和两个可选通信插件可以安装电路板。
特征：✦ 紧凑型设计
✦ DIN导轨安装
✦ 数字车载输入/输出
✦ 可拆卸螺钉接线板电源和输入/输出连接
✦ 一系列许可证允许不同的输入/输出和功能能力
DSDP150热电偶模块✦ S200 I/O和S200L的I/O支持␣ 输入/输出通过串行输入/输出总线集中
✦ S200 I/O、S200L I/O、，S800型␣ 通过远程输入/输出和S800L输入/输出PROFIBUS-DP（可选）
✦ 通过以下方式与其他系统通信RS-232和以太网（可选）
✦ 电池/实时时钟板（可选）
✦ 功能强大的基于Windows 2000的配置和编程工具
获得CE和UL认证
AC 800C is a small, cost-effective controller belonging to the AC 800 family. It is configured and programmed with Control Builder M, a Windows 2000® application. AC 800C has ten digital inputs and six digital outputs on board. Depending on the acquired license, up to 36 external digital and/or analog I/O units can also be connected. The controller has two on-board RJ-45 jacks for RS-232 channels. An optional battery board with a real-time clock and two optional communication plug-in boards can be installed. Features: ✦ Compact design ✦ DIN rail mounting ✦ Digital on-board I/O ✦ Detachable screw terminal blocks for power supply and I/O connections ✦ A range of licenses permitting different I/O and functional capabilities ✦ I/O support of S200 I/O and S200L␣ I/O centrally via the serial I/O bus ✦ I/O support of S200 I/O, S200L I/O, S800␣ I/O and S800L I/O remotely via PROFIBUS-DP (option) ✦ Communication with other systems by RS-232 and Ethernet (option) ✦ Battery/real-time clock board (option) ✦ Powerful Windows 2000-based configuration and programming tools ✦ Carries CE and UL approvals
