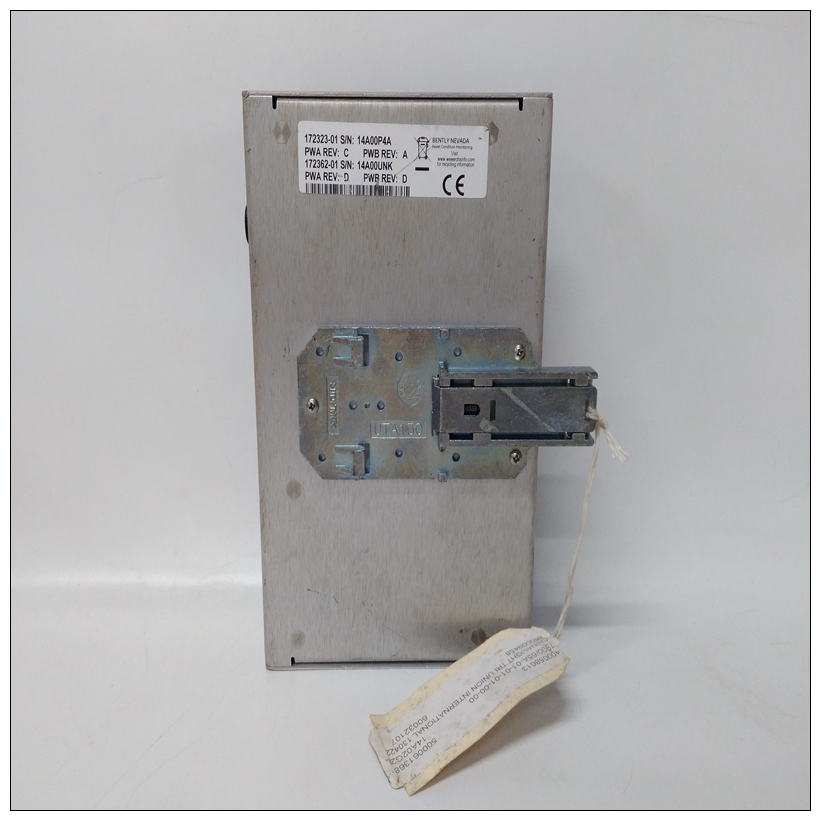

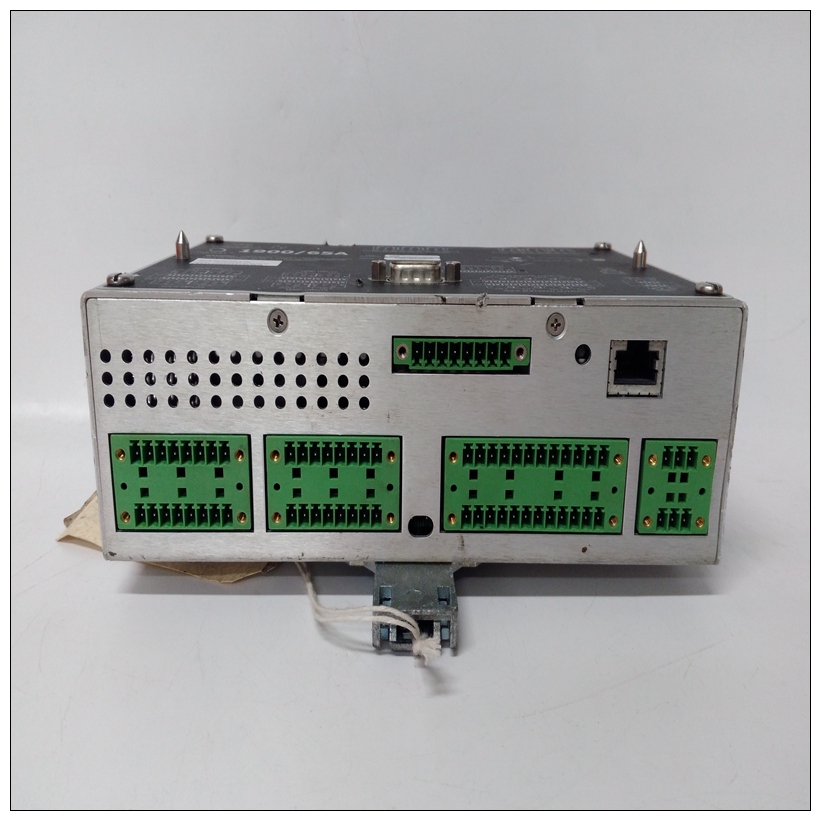

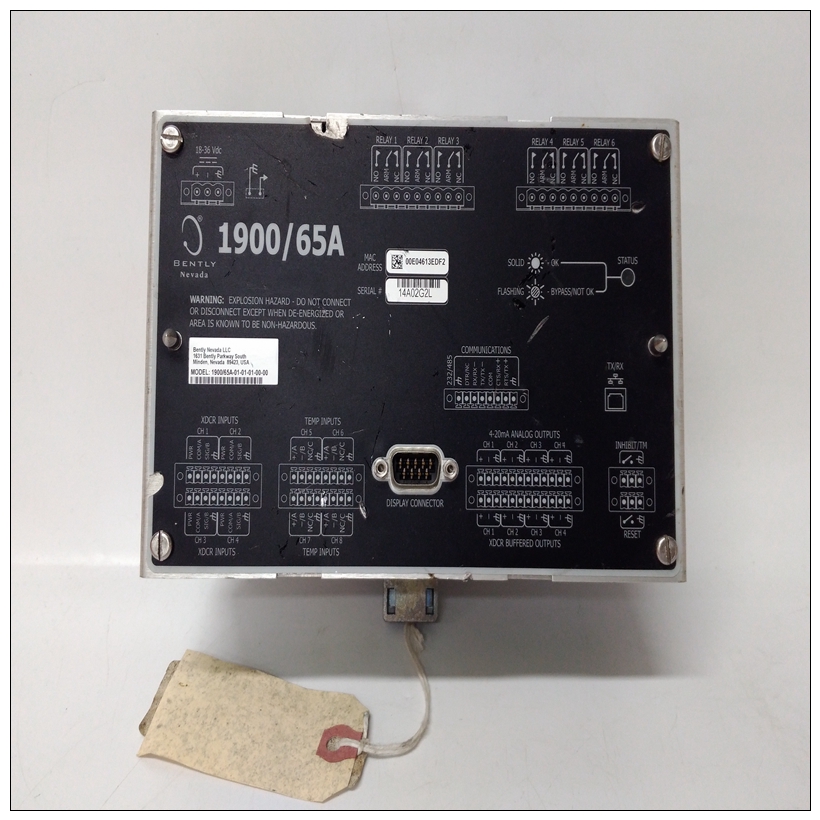

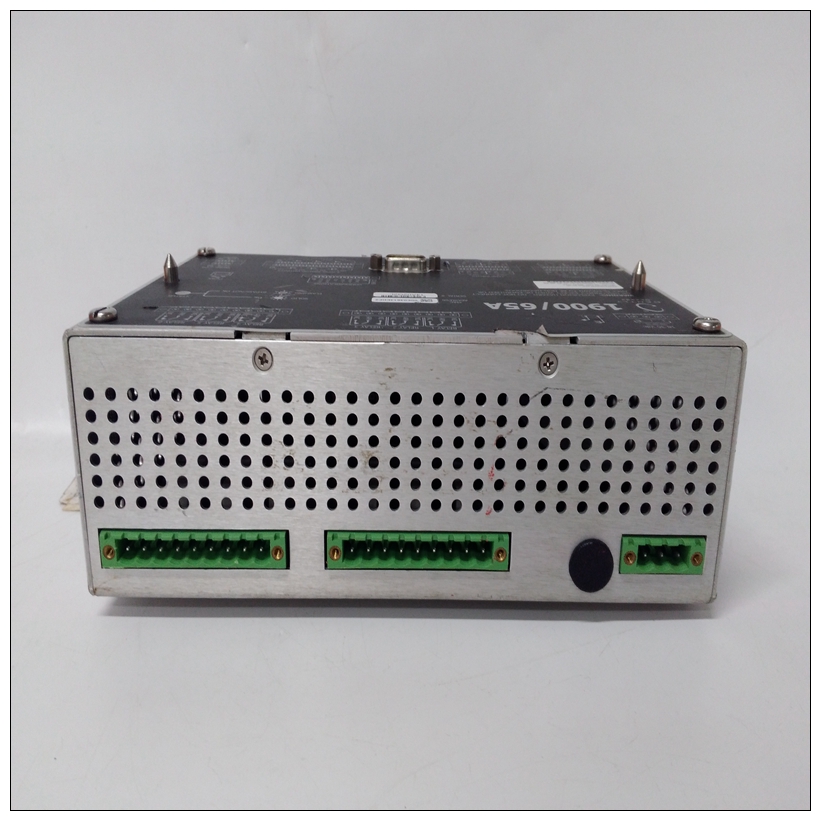

BENTLY 1900/65A-01-01-01-00-00监测器模块
标准辊（两个称重传感器）
当标准辊（两个称重传感器）连接到张力电子设备：•网络张力
显示称重传感器A和称重传感器B测得的腹板总张力•张力A显示由称重传感器A测量的腹板张力部分
•张力B显示由称重传感器B测量的腹板张力部分
•张力差A-B显示张力A和张力B之间的差异
BENTLY 1900/65A-01-01-01-00-00监测器模块4.7.1.2单侧A或单侧B测量（一个称重传感器）仅连接一个称重传感器（单侧测量）时，显示以下菜单
至张力电子设备：•网络张力腹板张力显示为单面测量。腹板张力是由连接的称重传感器测量的张力乘以2。
4.7.2错误和警告信息错误是指导致张力电子设备工作不正常的故障。
警告可能会影响测量的准确性。
出现警告或错误时，将在上显示警告或错误消息操作员面板和“状态”指示从绿色变为红色。
按下时，信息从显示屏上消失。
如果激活警告或错误消息的问题已消失“状态”指示变为绿色。
如果错误或警告仍然存在，“状态”指示为红色。使用到最后一步菜单，从中可以读取错误或警告消息。
有关错误和警告消息的处理，请参阅第6章故障跟踪
Standard Roll (two load cells)
The following menus are available when a standard roll (two load cells) is connected to the
tension electronics:
•
WebTension
Shows the total web tension measured by load cell A and load cell B
•
Tension A
Shows the part of web tension measured by load cell A
•
Tension B
Shows the part of web tension measured by load cell B
•
TensionDiff A-B
Shows the difference between Tension A and Tension B
4.7.1.2 Single Side A or Single Side B measurement (one load cell)
The following menu is shown when only one load cell (single side measurement) is connected
to the tension electronics:
•
WebTension
Web Tension is displayed for single side measurement.
Web tension is the tension measured by the connected load cell multiplied by 2.
4.7.2 Error and Warning Messages
An ERROR is something that causes the tension electronics to function incorrectly.
A WARNING is something that might affect the accuracy of the measurement.
When a warning or an error occurs, a warning or an error message is displayed on the
Operator Panel and the “Status” indication turns from green to red.
When is pressed the message disappears from the display.
If the problem that activated the warning or error message has disappeared the
“Status” indication turns to green.
If the error or warning remains the “Status” indication is red. Use the
to step to the last
menu, where you can read the error or warning message.
For handling Error and Warning messages, see Chapter 6 Fault-tracing
