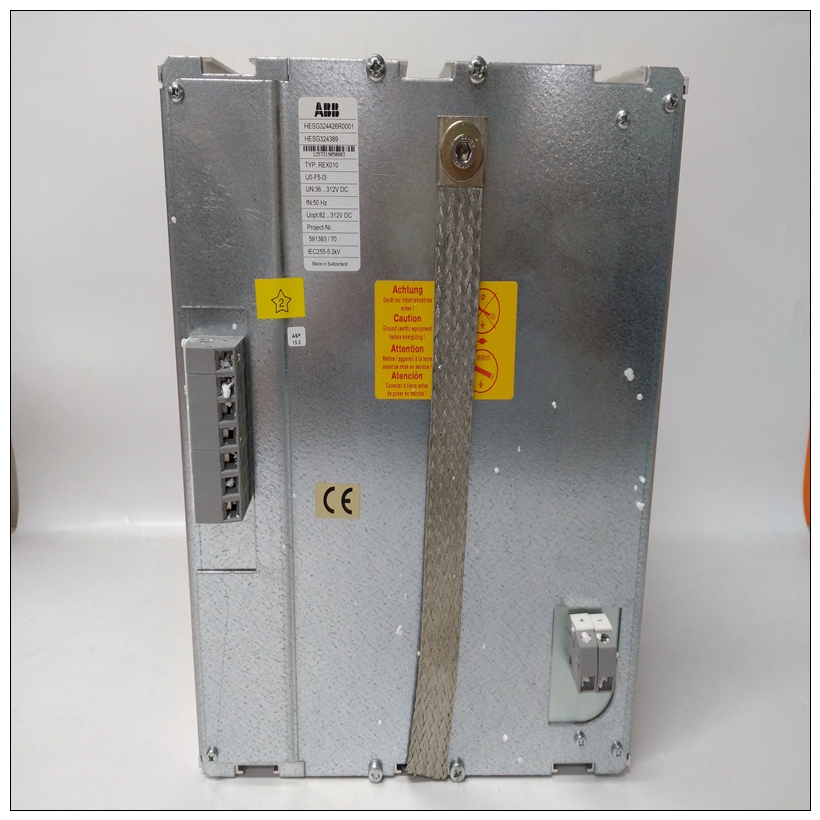

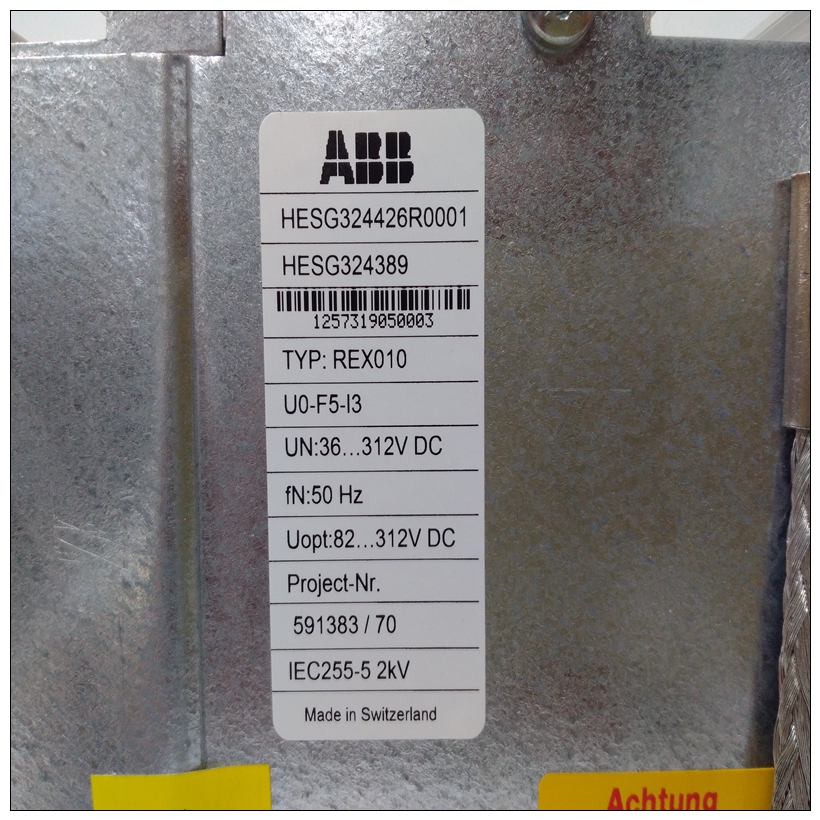

REX010控制面板,REX010配置手册
S710D数据收发器提供数据的双向传输两条多模光纤上的多协议数据。
数据转换S710D还具有独特的数据转换功能允许输入一种数据格式，输出另一种格式。
数据格式是在安装过程中选择的，可以轻松通过旋转开关在现场更换。
REX010控制面板卓越的诊断聪明人™ 诊断技术提供了广泛的阵列系统状态指示灯的数量。可以测试数据路径的完整性内置数据传输测试生成器。
没有必要连接到外部数据设备。标准功能通过两条多模光纤支持双向数据传输多协议数据格式，包括RS-232、TTL、RS-422、，RS-485、曼彻斯特、两相和传感器网络独特的数据转换功能用户可配置的数据格式13 dB光学预算光学AGCSMARTS公司™ 诊断
独立和机架配置
Overview
The S710D data transceiver provides two-way transmission of
multiprotocol data over two multimode fibers.
Data Translation
The S710D also features the unique data translation function that
allows input of one data format and output of a different format.
Data formats are selected during installation and can be easily
changed in the field via rotary switch.
Superior Diagnostics
The SMARTS™ diagnostic technology provides an extensive array
of system status LEDs. The integrity of the data paths can be tested
with a built-in data transmission test generator. It is not necessary
to connect to an external data device.Standard Features
Two-way data transmission over two multimode fibers Supports
multiprotocol data formats including RS-232, TTL, RS-422,
RS-485, Manchester, Biphase, and SensorNet
Unique data translation function
User-configurable data format
13 dB optical budget
Optical AGC
SMARTS™ diagnostics
Standalone and rack configurations
