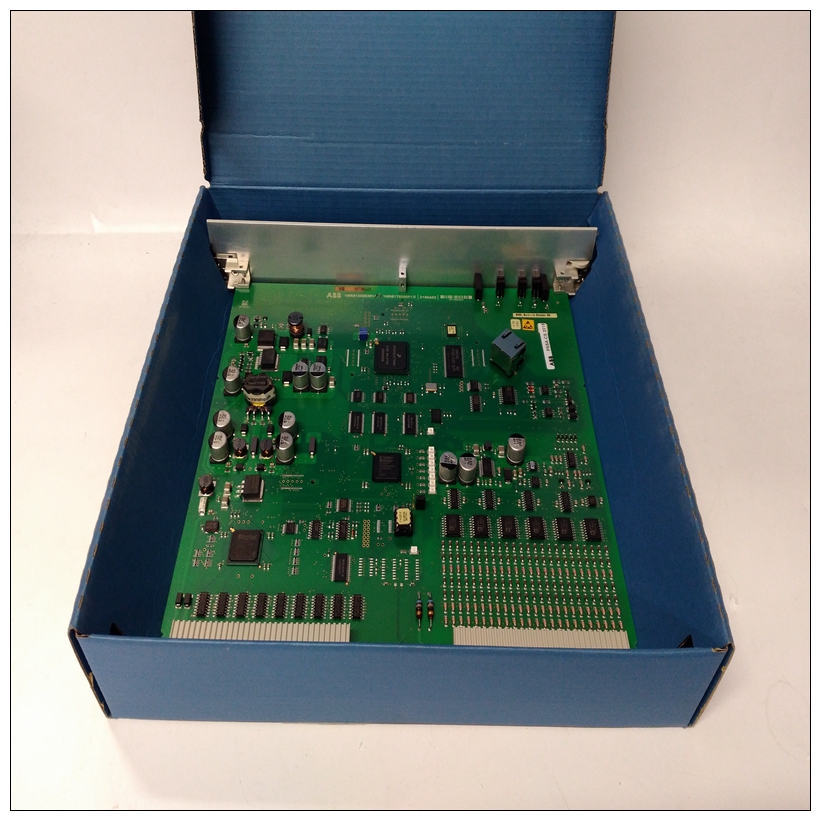

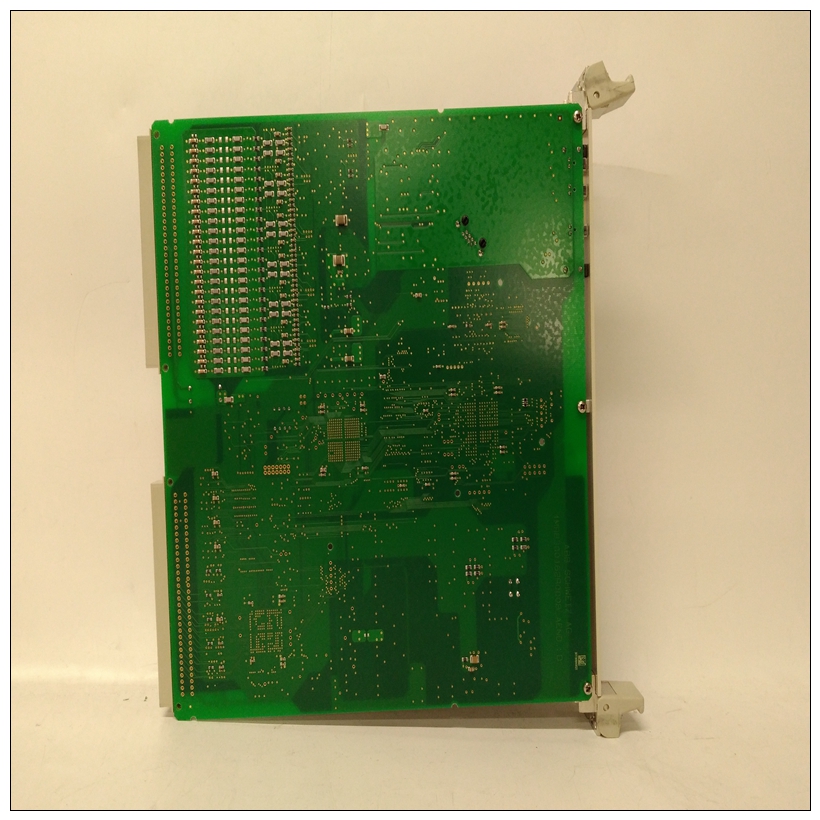

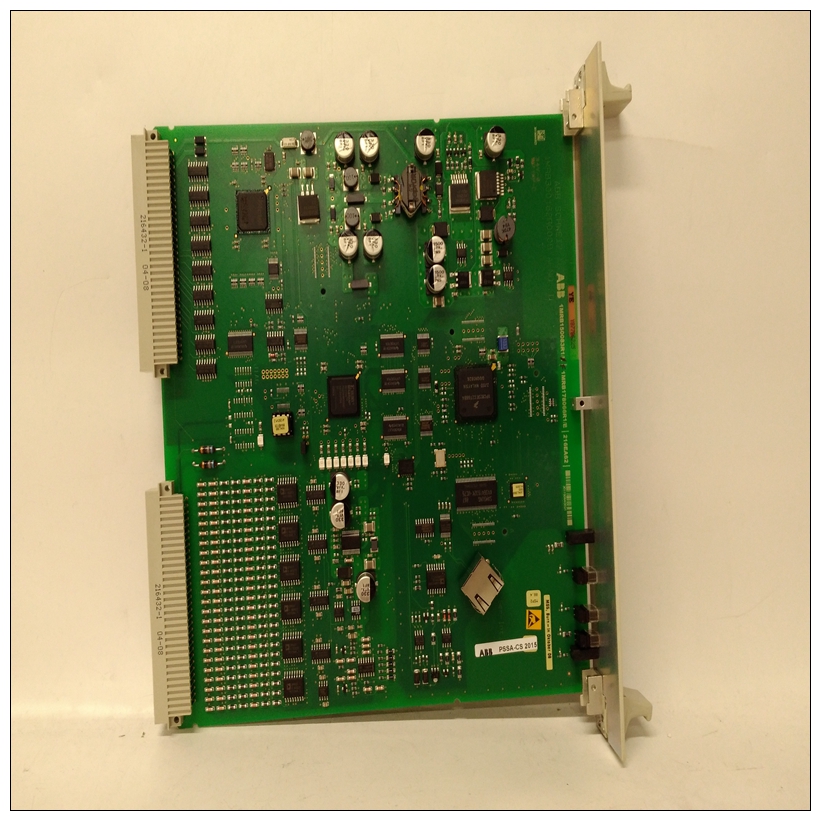

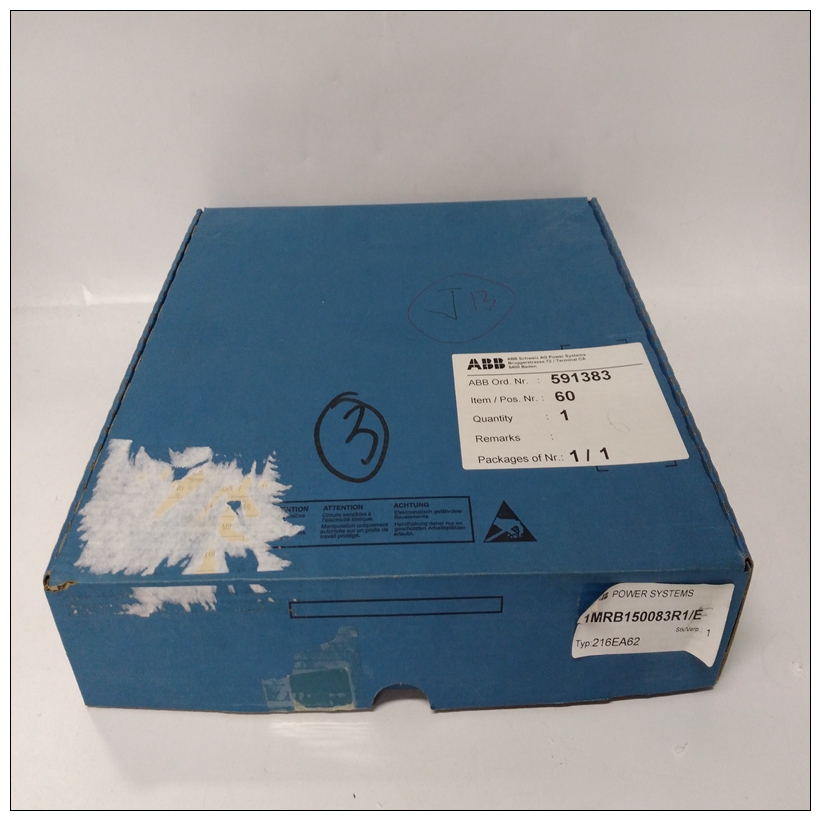

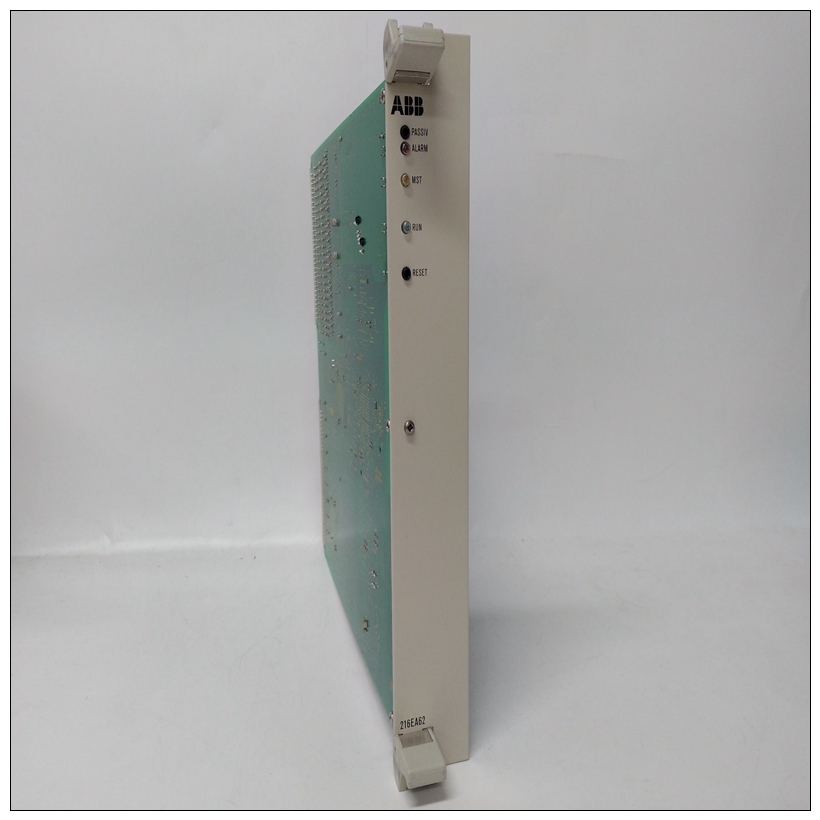

1MRB150083R1E卡件,1MRB150083R1E使用参数
超级标量RISC微处理器（高达150 MIPS）
16 K内部CPU缓存RAM
具有错误检测和纠正功能的RAM内存PM 802F：4 MB静态PM 803F：16 MB同步动态
闪存EPROMPM 802F：4 MB，32位字PM 803F：8 MB，32位字
EEPROM，串行，16 Kbit
监测设备内部的温度
4个现场总线模块插槽 2个以太网通信模块插槽，32位数据总线，100 MB/s
备用电池，包括电池监视器
1MRB150083R1E卡件基本单元PM 802F和PM803F分别循环通过相应的现场总线模块，根据用户安装的应用程序处理这些信号，并发送适当的通过现场总线模块向现场总线执行器发送信号。
控制器冗余可通过安装两个AC 800F。为确保在主AC 800F发生故障时，secon dary AC 800F能够快速、顺利地接管通过第二个以太网的冗余通信链路模块确保两个AC 800F始终同步。所有输入和输出均设计为支持冗余活动
AC 800F、过程和操作员之间的数据通信站点通过第一个以太网上的以太网系统总线运行单元还通过系统总线与工程站进行数据交换。工程站通信可能涉及新的或更新的配置文件下载到工艺站，或有关正在报告连接的模块。安装或更换现场总线模块时，所需的配置信息会自动更新。
配置和实时过程数据存储在RAM中。到保护此数据以防断电，RAM电源为
使用位于以太网模块上的电池进行备份或在电池模块上。PM 803F的内存比PM 802F多因此能够处理较大的项目。由于增加内存大小和不同的技术缓冲时间减少。
Features
Page 4
June 2006
Super Scalar RISC microprocessor (up to 150 MIPS)
16 K internal CPU cache RAM
RAM memory with error detection and correction
PM 802F: 4 MB static
PM 803F: 16 MB synchronous dynamic
Flash-EPROM
PM 802F: 4 MB, 32-bit words
PM 803F: 8 MB, 32- bit words
EEPROM, serial, 16 Kbit
Monitoring of the temperature inside the device
Watchdog
4 slots for fieldbus modules
2 slots for Ethernet communications modules, 32-bit data
bus, 100 MBytes/s
Battery backup incl. battery watchdog
Description
The basic unit, PM 802F and respectively PM803F, cyclically
scans signals from the fieldbus sensors via the corresponding
fieldbus modules, processes these signals according the appli
cation programs installed by the user and sends appropriate
signals to the fieldbus actuators via the fieldbus modules.
Controller redundancy can be achieved by installing two
AC 800F. To ensure quick and smooth takeover by the secon
dary AC 800F in case the primary AC 800F fails, a dedicated
redundancy communications link through the second Ethernet
module makes sure that both AC 800F are always synchro
nized. All inputs and outputs are designed to support redundant
operation.
Data communication between AC 800F, process and operator
stations runs over the Ethernet system bus on the first Ethernet
module. Data exchange with the engineering station is also car
ried via the system bus. Engineering station communications
can involve new or updated configuration files being
downloaded to the process stations, or information about the
connected modules being reported back. When fieldbus mod
ules are installed or exchanged, the required configuration in
formation is automatically updated.
Configuration and real-time process data is stored in RAM. To
safeguard this data in case of power loss, the RAM power is
backed up with batteries located either on the Ethernet modules
or on battery modules.
The PM 803F has more memory than the PM 802F and is
therefor capable to handle larger projects. Due to increased
memory size and different technology the buffering times were
reduced.
