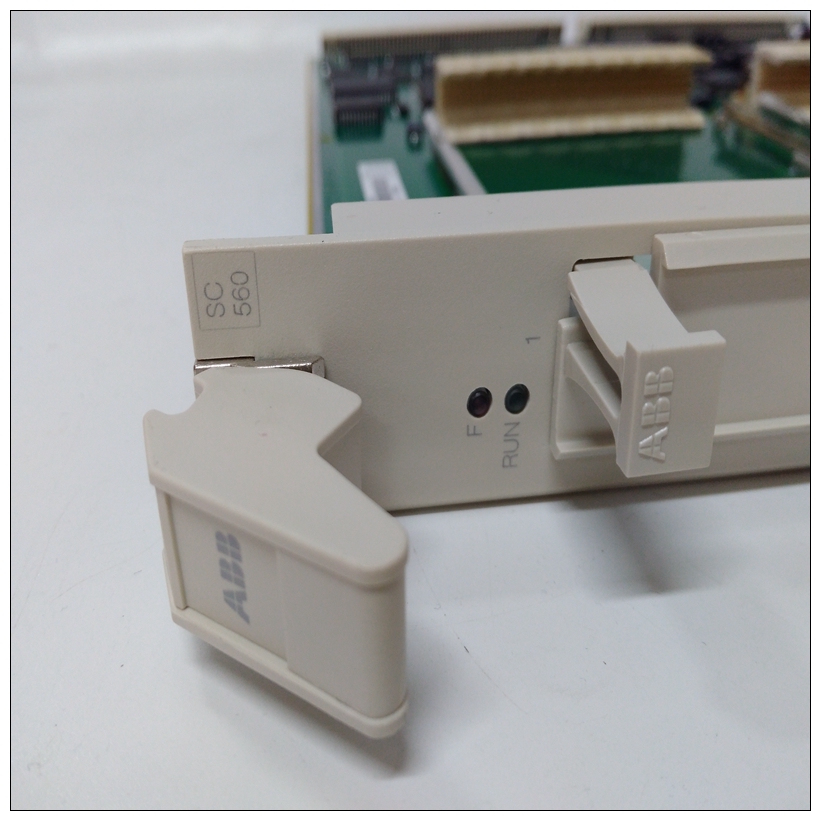

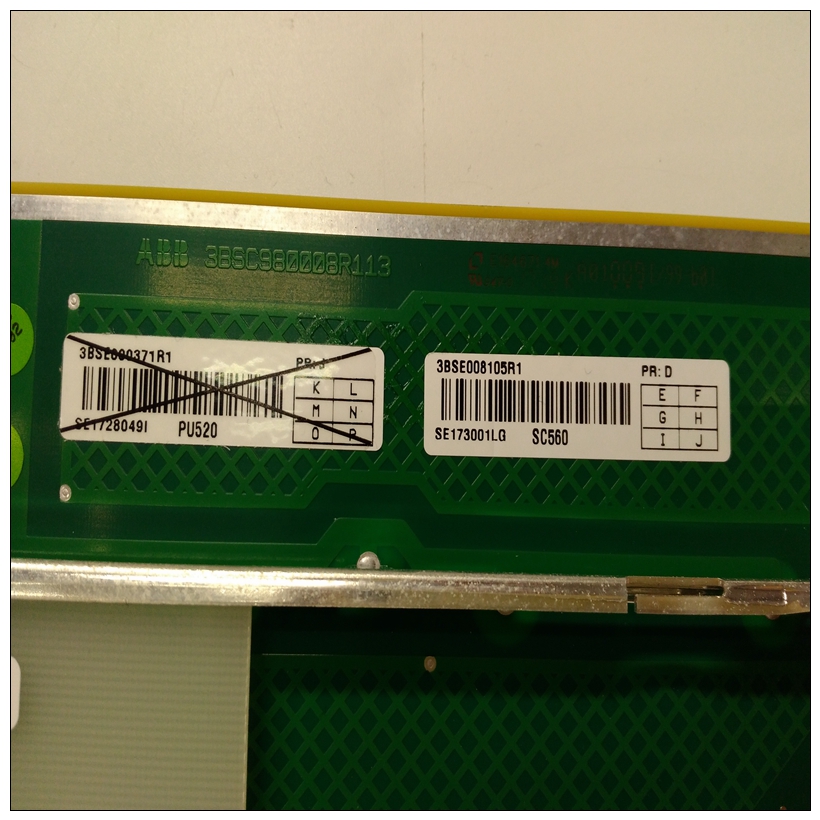

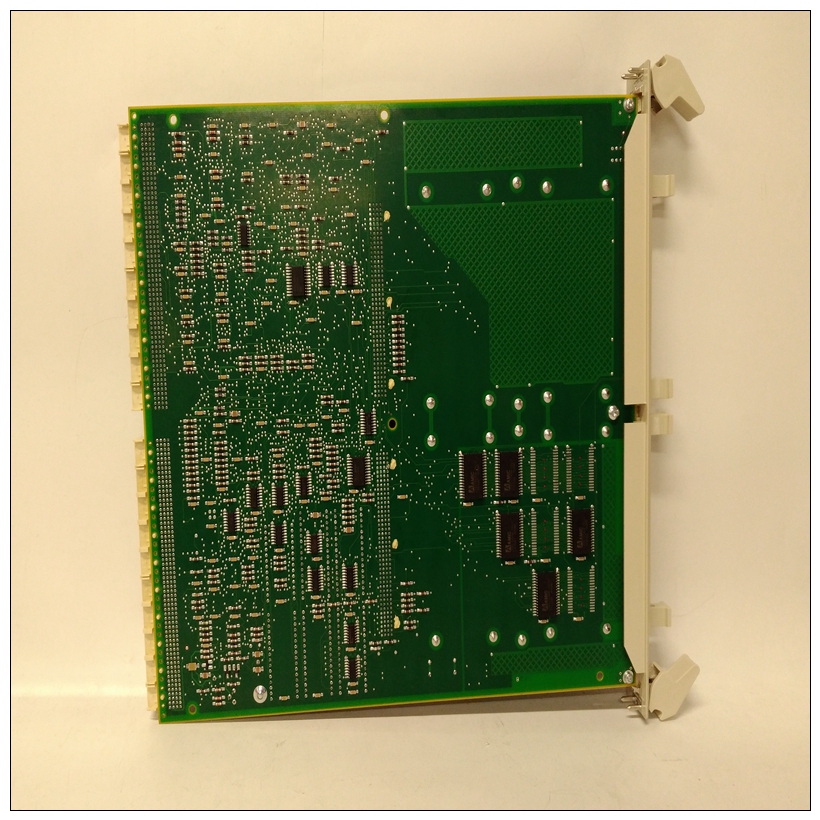

SC560系统DCS卡件,SC560使用配置手册
信号输出EO 1/EO 2d14/d16
电压输出0。。。10伏。对于根据特性具有单独通道的模式
价值对于模式Smax和SPPmax输出−通道测量值。
测量范围和根据特征值进行评估。
根据应用和配置，输出EO可用于连接或陈列防断路和短路，无反应。
SC560系统DCS卡件标称范围0+10 V直流电决议8−一点每负载电阻>10 kΩ内阻约为50Ω信号输入EI1/EI2单个输入−通道测量值1+10 V，用于与EO输出连接。
电压输入EI1/EI2 b14/b16标称电压范围0+10 V直流电决议10−一点输入电阻>100 kΩ信号输入键内部RPM确定需要按键脉冲，以检查中的测量值测量值分析。
信号输入键（N）d22信号电平24 V逻辑，：低=0。。。3伏；高=13。。。48伏输入电阻>10 kΩ1.6.2信道监测监控功能持续监控传感器信号良好范围（取决于配置）良好的阈值
− 下限阈值传感器工作范围下限值−0.5伏
− 上限阈值传感器工作范围上限值+0.5 V
系统电压电压−
Signal outputs EO 1 / EO 2
d14 / d16
voltage output 0 ... 10V. For modes with separate channels according to the characteristic
value. For modes Smax and SPPmax outputs of the single−channel measured values.
Measuring range and evaluation according to the characteristic value.
Depending on the application and configuration the outputs EO can be used for linkage or for
display.
Open circuit and short circuit proof, non reactive.
Nominal range 0 ... +10 V DC
Resolution 8−bit
Per. load resistance > 10 kΩ
Internal resistance Approximately 50 Ω
Signal inputs EI1 / EI2
Inputs for single−channel measurement values 1 ... +10 V for connection with EO outputs.
Voltage input EI1 / EI2 b14 / b16
Nominal voltage range 0 ... +10 V DC
Resolution 10−bit
Input resistance > 100 kΩ
Signal input KEY
The key pulse is required for internal RPM determination for checking the measurements in
the measured value analysis.
Signal input KEY (N) d22
Signal level 24 V logic,: LOW = 0 ... 3 V; HIGH = 13 ... 48 V
Input resistance > 10 kΩ
1.6.2 Channel monitoring
Monitoring function Constant monitoring
Sensor signals GOOD range (configuration dependent)
GOOD thresholds
− Lower threshold value Sensor work range lower value −0.5 V
− Upper threshold value Sensor work range upper value +0.5 V
System voltages Voltage − OK
