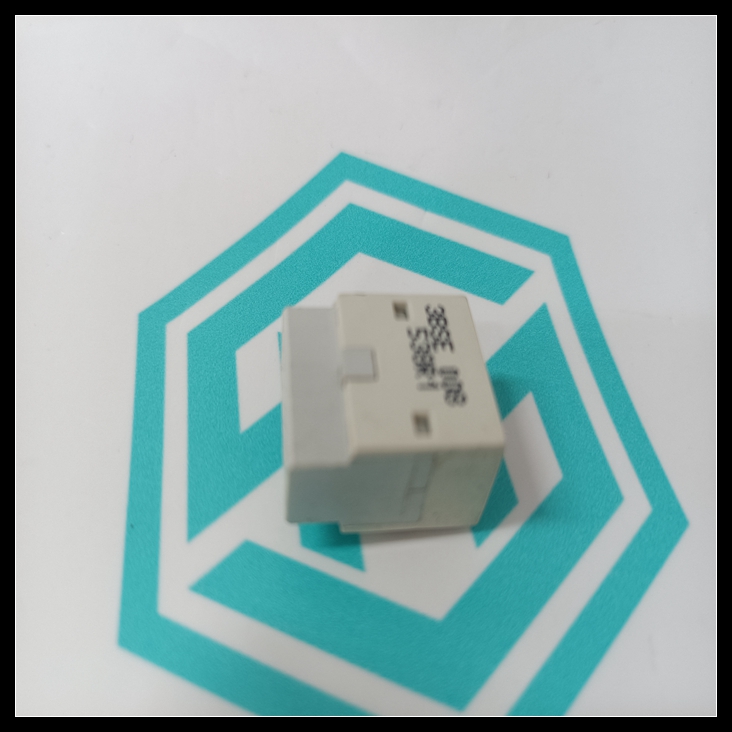

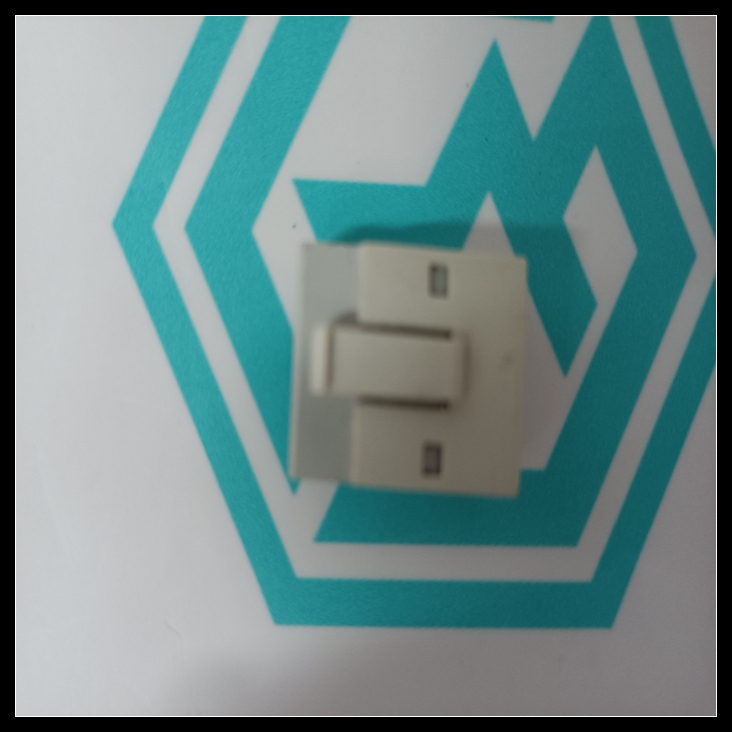

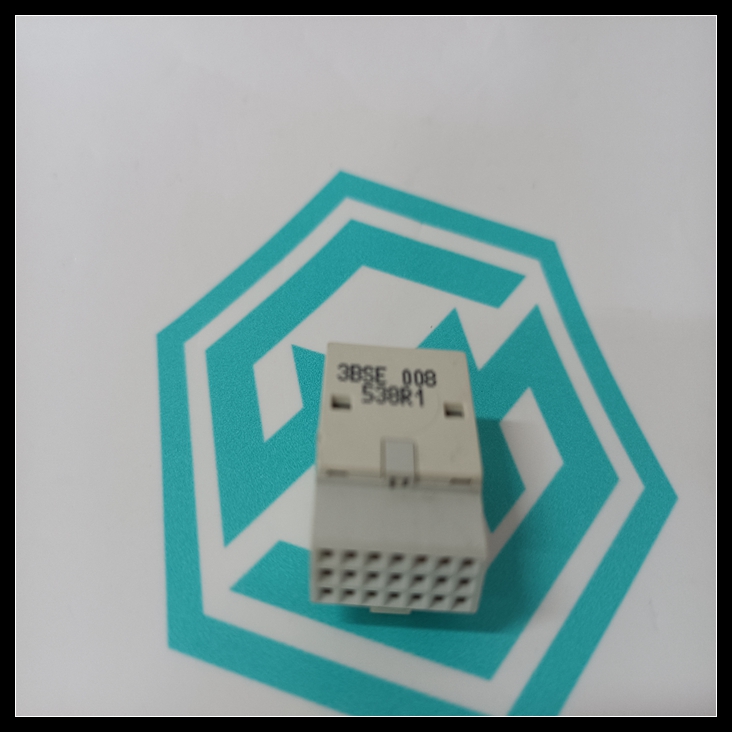

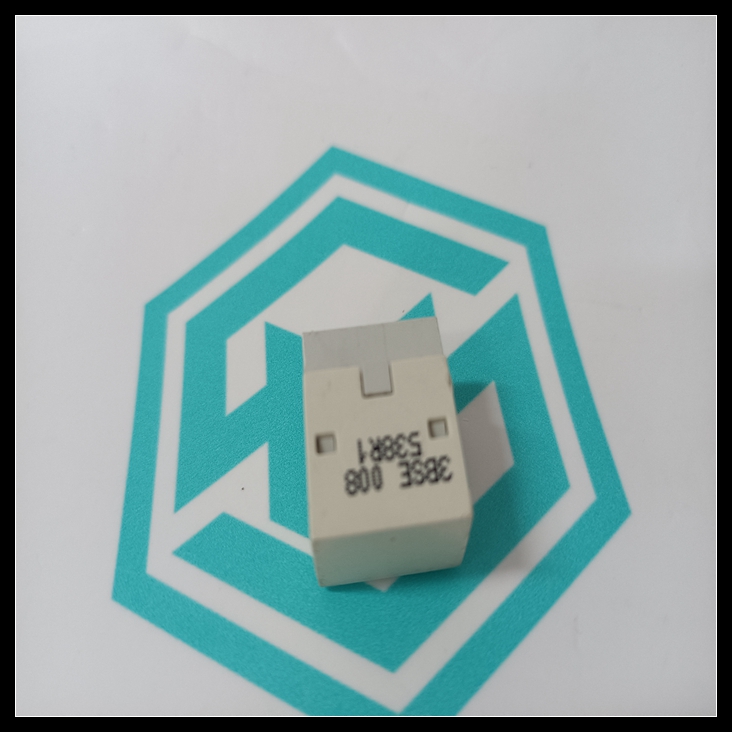

3BSE008538R1高压变频器配件,3BSE008538R1用户手册
如果CPU进入停止模式或复位，模块的状态可以默认为0/4
mA或保持最后状态。通过配置DEF0/4跳线来选择所需状态
在模块上的可拆卸端子板连接器上。如果未安装跳线，则3BSE008538R1
如果连接了备用用户电源，输出将在停止或重置时保持最后状态
当系统电源下降时。如果存在DEF0/4跳线，则模块默认为4 mA
停止或复位时，在4至20 mA范围内或在0至20 mA范围内为0 mA。每个跳线一个
模块用于对保持最后状态或DEF0/4的两个输出进行编程。
每个模块输出可用作电流源或精度较低的电压源。A.3BSE008538R1高压变频器配件
电压输出在与电流输出相对应的VOUTx处。选择电流或
电压输出通过输入/输出端子板上的跳线进行。如果未安装跳线，则
模块用作电流源。如果存在JMPVx跳线，模块将作为
电压源。每个通道都有选择电压或电流的选项。的设置
电流输出范围决定电压范围。电压范围可以通过使用
250欧姆电阻器代替JMPVx至IOUTx的电压跳线。下表显示
范围设置和电压输出之间的关系。
The state of the module if the CPU goes to the STOP mode or RESET, can be either Default to 0/4
mA or Hold-Last-State. Selection of the desired state is made by configuring the DEF0/4 jumper
on the detachable terminal board connector on the module. If the jumper is not installed, the
outputs will Hold-Last-State on STOP or RESET provided that a backup user supply is connected
when the system power goes down. If the DEF0/4 jumper is present, the module defaults to 4 mA
on the 4 to 20 mA range or 0 mA on the 0 to 20 mA range on STOP or RESET. One jumper per
module is used to program both outputs for Hold-Last-State or DEF0/4.
Each module output may be used as a current source or as a less accurate voltage source. A
voltage is output at VOUTx that corresponds to the current output. The selection of current or
voltage output is made with a jumper on the I/O terminal board. If no jumper is installed, the
module performs as a current source. If the JMPVx jumper is present, the module performs as a
voltage source. Each channel has the option of selecting voltage or current. The setting of the
current output range determines the voltage range. The voltage range can be increased by using a
250 ohm resistor in place of the voltage jumper from JMPVx to IOUTx. The following table shows
the relationship between range settings and voltage outputs.
