NI SCXI-1193 多路复用开关模块
1.产 品 资 料 介 绍:
中文资料:
NI SCXI-1193 多路复用开关模块的产品特点主要包括:
- 高密度32信道设计:该模块具有32个信号通道,能够实现高密度的多路复用功能,从而允许在多个测量通道之间进行快速切换,实现对多个信号源的复用。
- 可编程配置:SCXI-1193 可以根据应用需求进行编程配置,以适应不同的应用场景。
- 宽频带特性:该模块能够承受从DC到超过500MHz的信号频率,因此适用于需要对高频信号进行测量和分析的应用。
- 模块化设计:作为SCXI系列的一部分**,SCXI-1193** 通过模块化的设计与其他SCXI模块和设备兼容,使得用户可以根据需要进行系统的灵活配置和扩展。
- 多种拓扑结构:该模块可以实现多种拓扑结构,如四路8 x 1多路复用器、四路4 x 1端接多路复用器、双路16 x 1多路复用器、双路8 x 1端接多路复用器、32 x 1多路复用器、16 x 1端接多路复用器和独立模块等,提供了灵活的多路复用解决方案。
- 物理参数:其推荐工作温度范围为0°C至50°C,储存温度范围为-20°C至70°C,非冷凝湿度范围为5%至85%。此外,它的重量为2盎司,尺寸为1.2 x 6.8 x 7.8英寸。
英文资料
The product features of the NI SCXI-1193 multiplexer switch module mainly include:
High density 32 channel design: This module has 32 signal channels and can achieve high-density multiplexing function, allowing for fast switching between multiple measurement channels and achieving multiplexing of multiple signal sources.
Programmable Configuration: SCXI-1193 can be programmed and configured according to application requirements to adapt to different application scenarios.
Broadband characteristics: This module can withstand signal frequencies from DC to over 500MHz, making it suitable for applications that require measurement and analysis of high-frequency signals.
Modular design: As part of the SCXI series, SCXI-1193 is compatible with other SCXI modules and devices through modular design, allowing users to flexibly configure and expand the system according to their needs.
Multiple Topology Structures: This module can implement various topology structures, such as four channel 8 x 1 multiplexers, four channel 4 x 1 terminated multiplexers, dual channel 16 x 1 multiplexers, dual channel 8 x 1 terminated multiplexers, 32 x 1 multiplexers, 16 x 1 terminated multiplexers, and independent modules, providing flexible multiplexing solutions.
Physical parameters: Its recommended working temperature range is 0 ° C to 50 ° C, storage temperature range is -20 ° C to 70 ° C, and non condensing humidity range is 5% to 85%. In addition, it weighs 2 ounces and measures 1.2 x 6.8 x 7.8 inches in size.

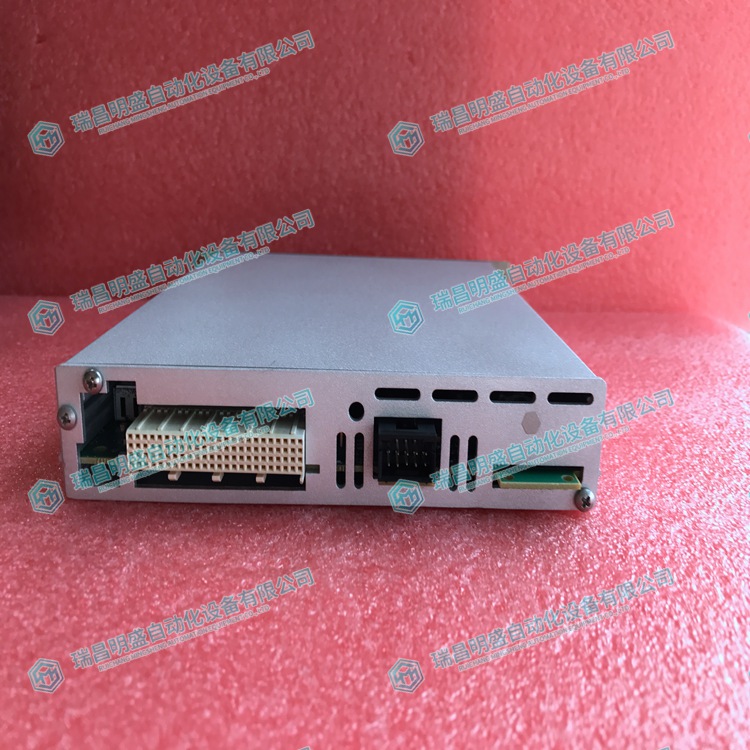

2.产 品 展 示
3.产 品 展 示
